Description

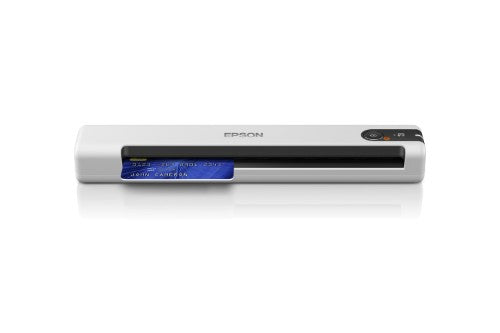

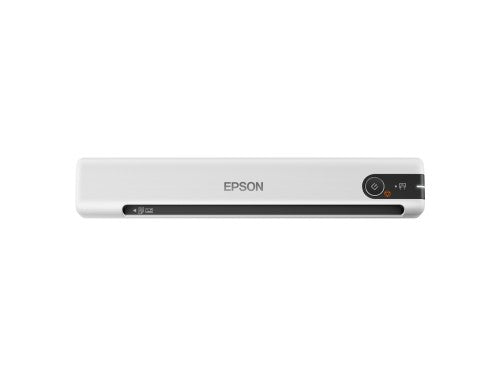

WorkForce DS-70

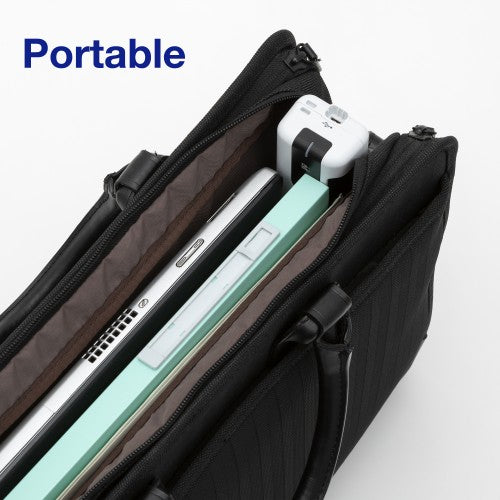

Scan anywhere
The small, compact design and USB connectivity make it easy to use the DS-70 wherever it's needed, such as in reception areas, and stores conveniently in a drawer.
Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents make scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

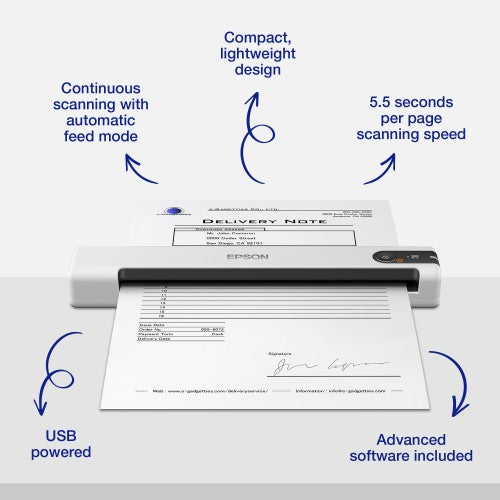

Key Features
- Small, lightweight design: Scan from anywhere with Epson's mobile scanner range

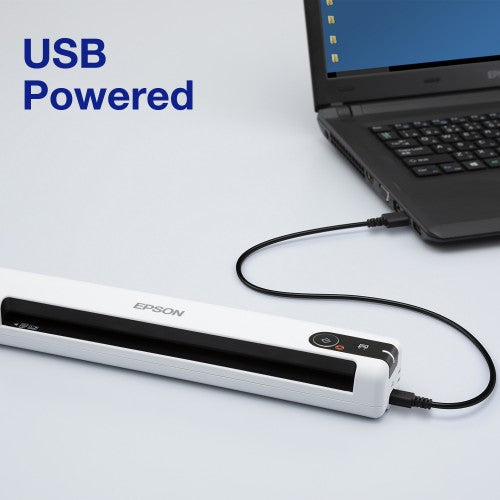

- USB connectivity: To re-charge, simply plug the scanner into a laptop or PC wherever you are
- Fast scanning speeds at 5.5 seconds per page: Efficiently scan documents, business cards and more from 35gsm to 270gsm, and long paper up to 1.8 metres
- Continuous scanning with automatic feed mode: Simplify your workload and speed up your scanning process
- Get scanning quickly and easily: With Epson software included you can save and send files in common formats like PDF,JPG, TIFF and many more
Description
The DS-70 is easy to use, set up and transport with its space-saving design, powered by the included single USB cable via your laptop or PC. Its included OCR and document capture software easily creates editable text and searchable PDFs while TWAIN drivers enable seamless integration to third party applications.Scan anywhere

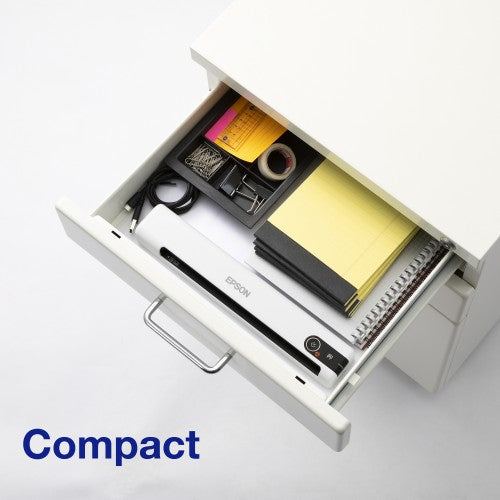

The small, compact design and USB connectivity make it easy to use the DS-70 wherever it's needed, such as in reception areas, and stores conveniently in a drawer.
Highly organised

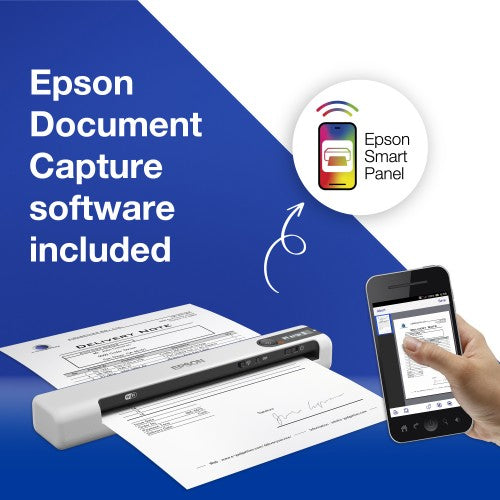

Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents make scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| Scan speed (colour, low res, A4) | 5.5 sec/page |
| Scan speed (b/w, low res, A4) | 5.5 sec/page |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | No |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 300 pages |
| Output resolutions | 600 dpi |
| Design | |
| Built-in display | No |
| Scanner type | Handheld scanner |
| Product colour | White |
| Performance | |
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 300 pages |
| Scan drivers | TWAIN, WIA, SANE, ICA |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 1 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Auto Document Feeder (ADF) media weight | 35 - 270 g/m² |
| Paper tray media weight | 35 - 270 g/m² |
| Ports & interfaces | |
| Standard interfaces | USB 2.0 |
| USB port | Yes |
| USB version | 2.0 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Bundled software | Document Capture Pro 2.0, Epson Scan 2 |
| Scan drivers | TWAIN, WIA, SANE, ICA |
| Power | |
| Power supply type | USB |

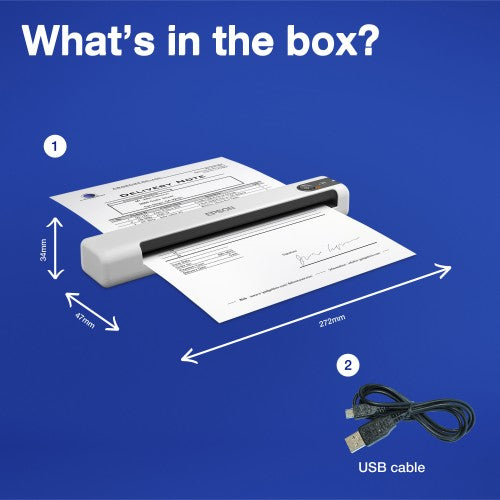

| Weight & dimensions | |
| Width | 272 mm |
| Depth | 47 mm |
| Height | 34 mm |
| Weight | 270 g |
| Package depth | 330 mm |
| Package weight | 553 g |
| Package width | 140 mm |
| Package height | 65 mm |
| Packaging data | |
| Package depth | 330 mm |
| Package weight | 553 g |
| Package width | 140 mm |
| Package height | 65 mm |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 360 pc(s) |
| Packaging content | |
| Cables included | USB |
| Bundled software | Document Capture Pro 2.0, Epson Scan 2 |
| Technical details | |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 171 cm |
| Master (outer) case gross weight | 0 g |
| Products per pallet layer (UK) | 60 pc(s) |
| Products per pallet layer | 60 pc(s) |
| Products per pallet (UK) | 360 pc(s) |
| Products per master (outer) case | 10 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 171 cm |
| Scanner type | Handheld scanner |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Country of origin | China |
| Product colour | White |
| Master (outer) case GTIN (EAN/UPC) | 8715946662596 |
| Harmonized System (HS) code | 84716070 |
| Features | |
| Country of origin | China |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Output resolutions | 600 dpi |
| Pallet gross weight | 0 g |
| Scanner type | Handheld scanner |
| Country of origin | China |
| Products per pallet | 360 pc(s) |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 320 mm |
| Logistics data | |
| Pallet gross weight | 0 g |
| Country of origin | China |
| Products per pallet | 360 pc(s) |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 320 mm |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 171 cm |
| Master (outer) case gross weight | 0 g |
| Products per pallet layer (UK) | 60 pc(s) |
| Products per pallet layer | 60 pc(s) |
| Products per pallet (UK) | 360 pc(s) |
| Products per master (outer) case | 10 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 171 cm |
| Master (outer) case GTIN (EAN/UPC) | 8715946662596 |
| Harmonized System (HS) code | 84716070 |
