Description
Epson WorkForce DS-870, 600 x 600 DPI, 30 bit, 24 bit, 10 bit, 8 bit, 65 ppm
Description

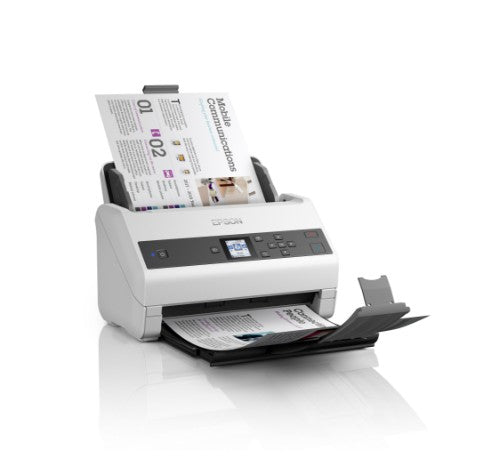

Epson WorkForce DS-870. Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Grey, White, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 7000 pages, Scan file formats: JPEG, PDF, TIFF. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A3, A4, A5, A6Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 65 ppm |
| ADF scan speed (colour, A4) | 65 ppm |
| Input greyscale depth | 10 bit |
| Sensor type | CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 7000 pages |
| Scan to | E-mail, FTP, Software, Print, Network folder |
| Output resolutions | 1200 dpi |
| Design | |
| Built-in display | Yes |
| Scanner type | Sheet-fed scanner |
| Display diagonal | 3.81 cm (1.5") |
| Display | LCD |
| Product colour | Grey, White |
| Colour display | Yes |
| Performance | |
| Sensor type | CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 7000 pages |
| Scan to | E-mail, FTP, Software, Print, Network folder |
| Scan drivers | TWAIN, ISIS, SANE, WIA |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| Password protection | Yes |
| Ultrasonic sensor | Yes |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Maximum scan area (ADF) | 215.9 x 6096 mm |
| Minimum scan area (ADF) | 50.8 x 50.8 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Letter | Yes |
| Legal | Yes |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| Ports & interfaces | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Optional connectivity | Ethernet |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Supported network protocols (IPv6) | Yes |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| Supported network protocols (IPv4) | TCP/IP, DHCP, DNS, SNMP, SLP |
| IPv6 support | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 |
| Bundled software | Document Capture Pro 2.0, Epson Device Admin (EDA), Epson Scan 2 |
| Scan drivers | TWAIN, ISIS, SANE, WIA |
| Drivers included | Yes |
| Power | |
| Power consumption (typical) | 30 W |
| Power consumption (off) | 0.1 W |
| Input voltage | 100 - 240 V |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Weight & dimensions | |
| Width | 296 mm |
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
| Package depth | 370 mm |
| Package weight | 4.95 kg |
| Package width | 270 mm |
| Package height | 320 mm |
| Packaging data | |
| Package depth | 370 mm |
| Package weight | 4.95 kg |
| Package width | 270 mm |
| Package height | 320 mm |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 48 pc(s) |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Bundled software | Document Capture Pro 2.0, Epson Device Admin (EDA), Epson Scan 2 |
| Drivers included | Yes |
| Technical details | |
| Products per pallet layer (UK) | 10 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Products per pallet (UK) | 60 pc(s) |
| Pallet weight (UK) | 0 g |
| Scanner type | Sheet-fed scanner |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Country of origin | Indonesia |
| Product colour | Grey, White |

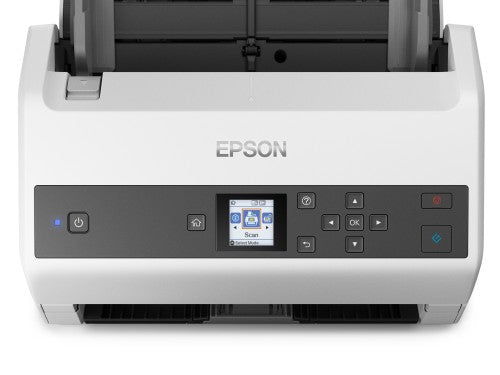

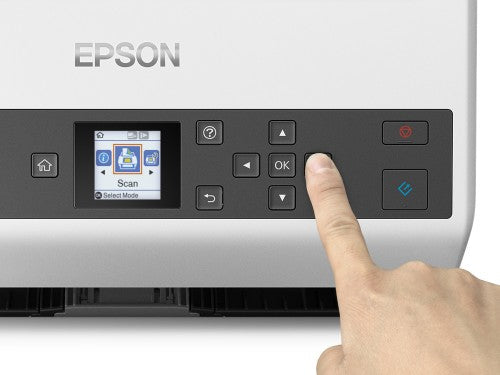

| Control panel | 5-line LCD with Push Scan features |
| Scan technology | ReadyScan LED |
| Supported network protocols (IPv6) | Yes |
| Harmonized System (HS) code | 84716070 |
| Display | |
| Display diagonal | 3.81 cm (1.5") |
| Display | LCD |
| Media formats | |
| Letter | Yes |
| Legal | Yes |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| Features | |
| Country of origin | Indonesia |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Other features | |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Output resolutions | 1200 dpi |
| Control panel | 5-line LCD with Push Scan features |
| Pallet gross weight | 0 g |
| Scanner type | Sheet-fed scanner |
| Country of origin | Indonesia |
| Products per pallet | 48 pc(s) |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Pallet gross weight | 0 g |
| Country of origin | Indonesia |
| Products per pallet | 48 pc(s) |
| Quantity per pack | 1 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Products per pallet (UK) | 60 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84716070 |
