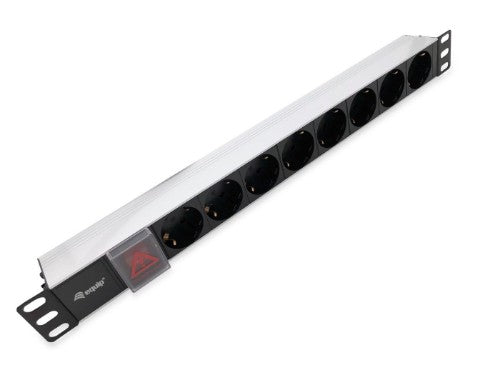

8 x DIN49440, 250 V, 50/60 Hz, 16A, 3500 W, 1.8 m, 790g
Key Features
- 1U Horizontal installation

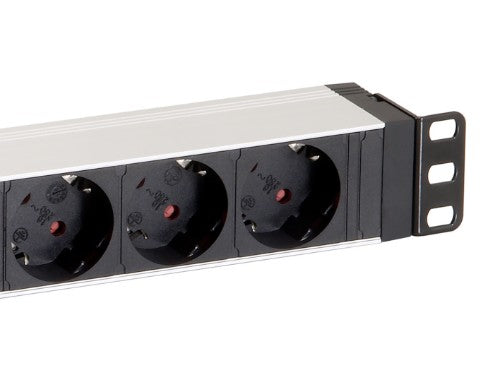

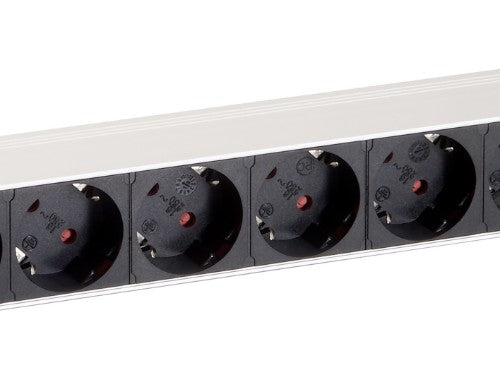

- 8 x DIN49440 (German)
- Rating: 220-240V 50/60Hz
- Current rating: 16A
- Maximum power: 3500W
- Material: Aluminum
- Cable Length: 1.8m
Description
The equip® Power Distribution Unit is a sturdily-built product designed to distribute clear and crisp electricity. The product is thoroughly tested to ensure the functionality and reliability. Attached with an 1.8m cable, built with a power on/off switch, easy-to-install mechanical design, this is the ideal choice for the 19" cabinet system installation.
Specifications
| Design |
|---|

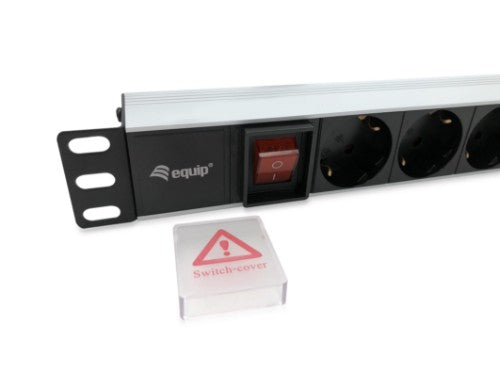

| On/off switch |
Yes |
| Mounting |
Horizontal |
| Product colour |
Black, Silver |
| Certification |
CE |
| Rack capacity |
1U |
| Housing material |
Aluminium |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
Type F |

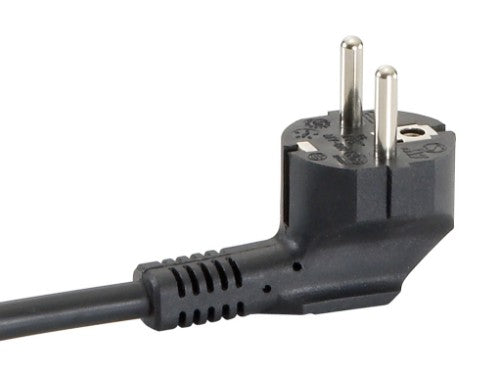

| Power plug |
Type F |
| Features |
|---|
| Cable length |
1.8 m |
| Certification |
CE |
| Cable type |
SPEC:H05VV-F 3G |
| Ergonomics |
|---|
| Cable length |
1.8 m |
| Cable type |
SPEC:H05VV-F 3G |
| Power |
|---|
| Nominal input voltage |
250 V |
| Maximum current |
16 A |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Weight |
790 g |
| Width |
45 mm |
| Depth |
45 mm |
| Height |
482.6 mm |
| Package width |
90 mm |
| Package depth |
60 mm |
| Package height |
515 mm |
| Package weight |
920 g |
| Packaging data |
|---|
| Package width |
90 mm |
| Package depth |
60 mm |
| Package height |
515 mm |
| Package weight |
920 g |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Country of origin |
China |
