Description

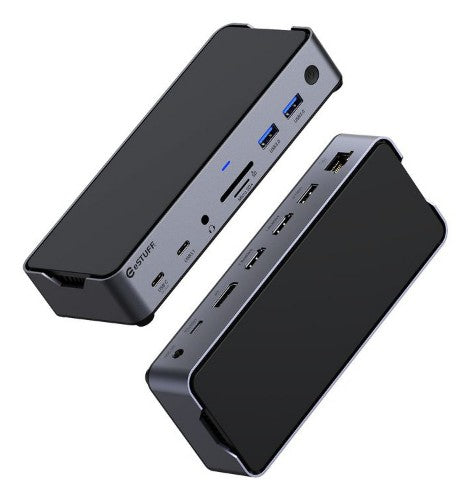

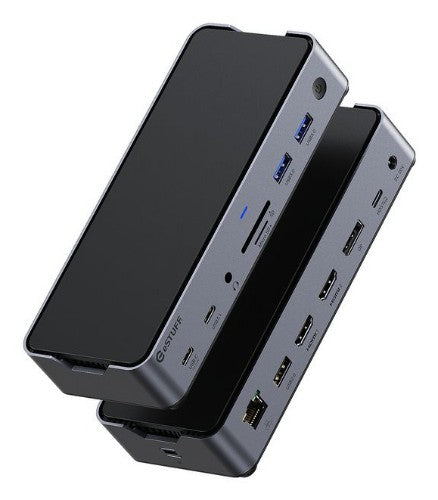

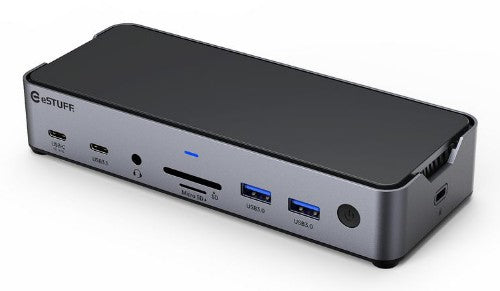

Triple 4K USB-C Docking Station
The stylish alunimium housing combines high performance and flexibility with a wide range of features including up to 100W PD charging, gigabit ethernet with PXE boot and MAC address passthrough, five USB ports to connect devices and card readers.
Featuring MST technology, it's ideal for professionals seeking reliable plug-and-play functionality with ease of use in an office setting.
Max resolution Windows
1 monitor: 8K@30Hz or 4K@144Hz
2 monitors: 4K@60Hz
3 monitors: 2x4K@60Hz + 1 x 4K@30Hz
Please note: Windows based computers support MST mirrored and extended desktop for up to 3 monitors.
Max resolution MacOS
1-2 monitors: 4K@60Hz
3 monitors: 4K@30Hz
Please note: MacOS based computers only support SST mirrored desktop for up to 3 monitors.
Key Features
- Supports PXE Boot
- Supports MAC Pass-through
- MST dock
Description

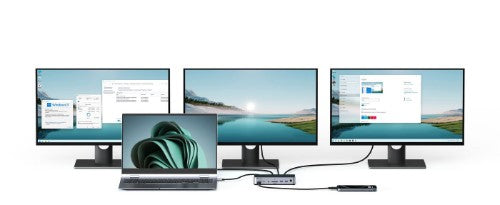

This triple-display USB-C dock lets you easily connect two HDMI monitors and one Displayport monitor using one USB-C cable, with no setup or display drivers required, right out of the box.The stylish alunimium housing combines high performance and flexibility with a wide range of features including up to 100W PD charging, gigabit ethernet with PXE boot and MAC address passthrough, five USB ports to connect devices and card readers.
Featuring MST technology, it's ideal for professionals seeking reliable plug-and-play functionality with ease of use in an office setting.
Max resolution Windows
1 monitor: 8K@30Hz or 4K@144Hz
2 monitors: 4K@60Hz
3 monitors: 2x4K@60Hz + 1 x 4K@30Hz
Please note: Windows based computers support MST mirrored and extended desktop for up to 3 monitors.
Max resolution MacOS
1-2 monitors: 4K@60Hz
3 monitors: 4K@30Hz
Please note: MacOS based computers only support SST mirrored desktop for up to 3 monitors.
Specifications

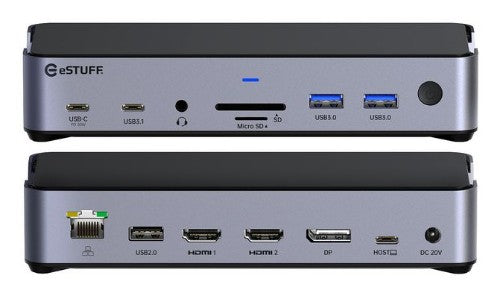

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| HDCP version | 2.2 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Product colour | Aluminium |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| LED indicators | Link |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | MicroSDXC |
| Built-in SSD | No |
| Cable lock slot type | Kensington |
| HD type | 8K Ultra HD |
| Housing material | Aluminium |
| Display modes | Duplicate |
| Maximum refresh rate | 60 Hz |
| Suitable for | Office |
| Technical details | |
| Product colour | Aluminium |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Cable length | 1 m |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Power | |
| Power source type | AC |
| Input current | 7.5 A |
| Power plug type | Type C |
| Power consumption (max) | 150 W |
| Compatible power plug types | EU |
| AC input voltage | 20 V |
| Power consumption (standby) | 0.2 W |
| Power supply | 150 W |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Indication | |
| LED indicators | Link |
| Weight & dimensions | |
| Weight | 752 g |
| Width | 68.5 mm |
| Depth | 168 mm |
| Height | 33 mm |
| Package weight | 850 g |
| Package width | 121 mm |
| Package depth | 207 mm |
| Package height | 78 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Aluminium |
| Cable lock slot | Yes |
| LED indicators | Link |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 850 g |
| Package width | 121 mm |
| Package depth | 207 mm |
| Package height | 78 mm |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| Cable length | 1 m |
