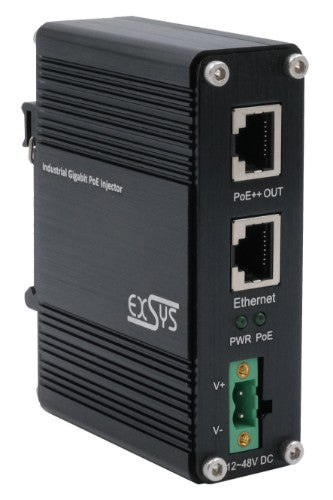

PoE++ Gigabit Injector 90W, -40°C to +80°C
Key Features
- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- Terminal block for DC input, +12 V to +48 VDC
- Rugged, compact metal housing, IP40

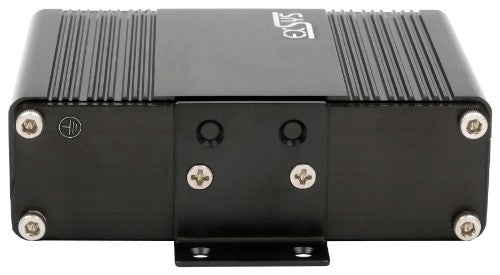

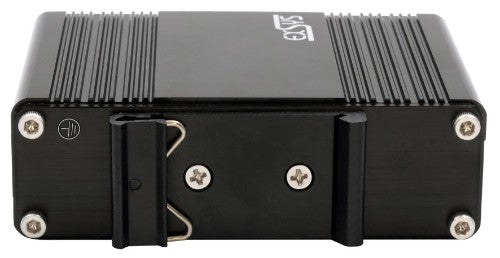

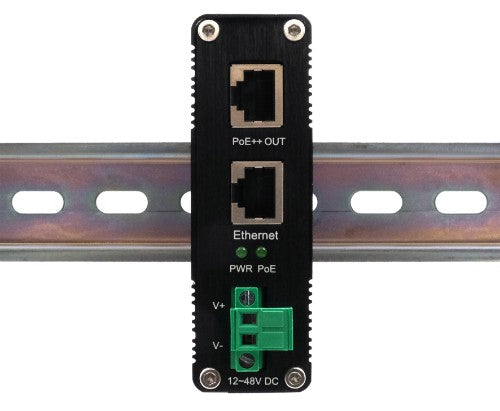

- Includes DIN-Rail Kit and wall mounting bracket
- Extended operating temperature range from -40°C to +80°C
Description
The Gigabit Ethernet PoE Injector EX-60315 in a robust metal housing allows end devices such as IP telephones, IP cameras, WLAN access points, etc. to be powered via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) and enables a maximum power output of up to 90W at the PoE port. Power is supplied via the +12~48V terminal block using an optional external power supply. The EX-60315 guarantees secure data transmission and excellent performance of up to 1000Mbps. The rugged metal housing and extended operating temperature range of -40°C to 80°C make it suitable for a wide range of applications, even in harsh environments. Supplied with a pre-assembled DIN rack kit and wall mounting bracket.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000 |
| Features |
|---|
| Wall mountable |
Yes |
| Plug and Play |
Yes |
| Product colour |
Black |
| LED indicators |
PoE, Status |
| Housing material |
Metal |
| International Protection (IP) code |
IP40 |
| Networking standards |
IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Country of origin |
China |
| Package type |
Box |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Total Power over Ethernet (PoE) budget |
90 W |
| Power over Ethernet (PoE) power per port |
90 W |
| Input voltage |
12 - 48 V |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), CE, RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 176 °F |
| Operating temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
370 g |
| Width |
95 mm |
| Depth |
67.5 mm |
| Height |
28 mm |

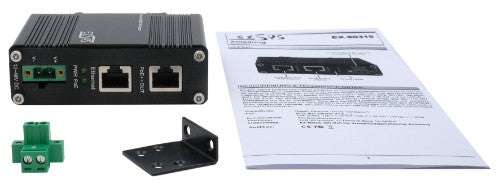

| Packaging content |
|---|
| Manual |
Yes |
| Wall mounting kit |
Yes |
| Package type |
Box |
| Packaging data |
|---|
| Package type |
Box |
| Technical details |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operating temperature (T-T) |
-40 - 176 °F |
| Input voltage |
12 - 48 V |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Sustainability compliance |
Yes |
| Compliance certificates |
Federal Communications Commission (FCC), CE, RoHS |
| Indication |
|---|
| LED indicators |
PoE, Status |
| Logistics data |
|---|
| Country of origin |
China |
