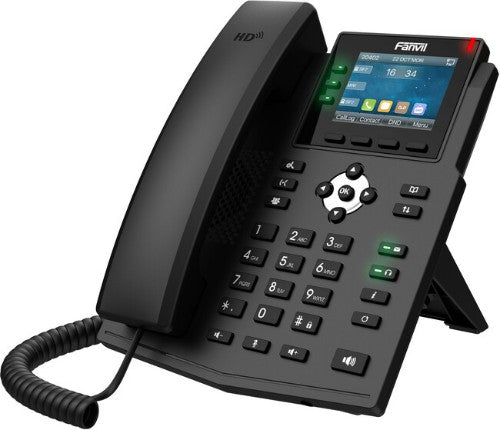

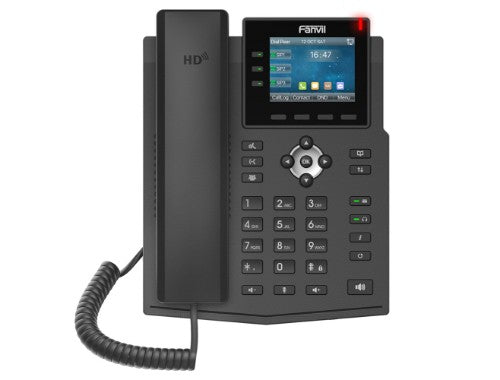

2.8" LCD, 320x240, 10/100/1000 Mbps, VPN, PoE, 169 x 186.3 x 174.5 mm
Key Features
- 6 SIP lines, 3-way conference, SIP hotspot
- 3 Line keys on the main display
- 2.8” main color display
- HD audio on speakerphone and handset
- Opus voice: can handle a variety of audio applications, including IP voice, multiparty conference etc
- Support EHS wireless headset
- Dual Gigabit ports, integrated PoE
- Stand with 2 adjustable angles of 45 and 50 degrees
Description
As an ideal cost-effective Gigabit IP phone, Fanvil X3U provides the direct access to instructions with the intuitive design of high-resolution color display and newly increased line keys, offering you greater flexibility, productivity, to exceed the different demands of businesses. Wideband codec of G.722 and Opus in this device deliver you an immersive HD audio experience in both high band and low band with the network.
Specifications
| Features |
|---|
| Number of function keys |
9 |
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Handset type |
Wired handset |
| Mounting |
Desk/Wall |
| Wall mountable |
Yes |
| Volume control |
Buttons |
| Keypad number of keys |
37 |
| Handset |
Yes |
| Product colour |
Black |
| Technical details |
|---|
| Number of function keys |
9 |
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Handset type |
Wired handset |
| Mounting |
Desk/Wall |
| Volume control |
Buttons |
| Speakerphone |
Yes |
| Keypad number of keys |
37 |
| Handset |
Yes |
| Design |
|---|
| Product type |
IP Phone |
| Handset type |
Wired handset |
| Mounting |
Desk/Wall |
| Wall mountable |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Phone features |
|---|
| Call transfer |
Yes |
| Call log entries |
600 |
| Lines quantity |
6 lines |
| Speed dialling |
Yes |
| Redialing |
Yes |
| Phonebook capacity |
1000 entries |
| Intercom |
Yes |
| Full duplex |
Yes |
| Caller ID |
Yes |
| Call pick up |
Yes |
| Call park |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Anonymous call |
Yes |
| Management features |
|---|
| Number of function keys |
9 |
| Volume control |
Buttons |
| Keypad number of keys |
37 |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
320 x 240 pixels |
| Display diagonal |
7.11 cm (2.8") |
| Display |
LCD |
| Audio |
|---|
| Comfort noise generation (CNG) |
Yes |
| Voice codecs |
CNG, G.722, OPUS |
| Speakerphone |
Yes |
| Noise reduction |
Yes |
| Microphone mute |
Yes |
| Echo cancellation |
Yes |
| Adaptive jitter buffers |
Yes |
| Packet loss concealment (PLC) |
Yes |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
No |
| Syslog |
Yes |
| Supported network protocols |
SIP v2 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| DHCP client |
Yes |
| Bluetooth |
No |
| Colour |
|---|
| Product colour |
Black |
| Microphone |
|---|
| Microphone mute |
Yes |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Ports & interfaces |
|---|
| RJ-9 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| AC adapter output current |
0.6 A |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
2.95 W |
| AC adapter output voltage |
5 V |
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
169 mm |
| Depth |
186.3 mm |
| Height |
174.5 mm |
| Packaging content |
|---|
| Number of handles included |
1 pc(s) |
| Handset |
Yes |
