Description

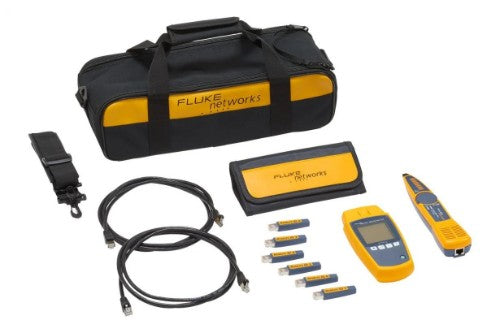

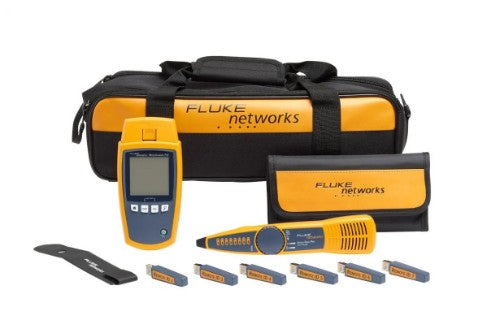

UTP/FTP/SSTP, RJ45/RJ11, LCD, 2 x AA, 7.6 x 16.3 x 3.6 cm, 300 g, IntelliTone Pro 200 Probe

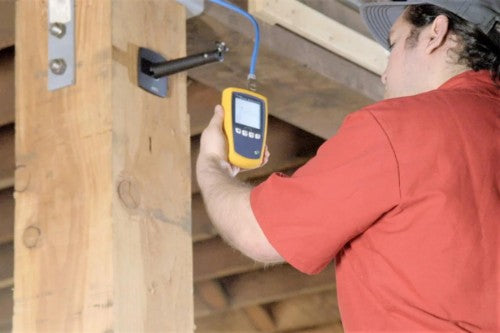

The MicroScanner™ PoE also allows for easy installation/maintenance on IT, Security, PoE lighting, Ethernet based HVAC devices and IP based Building Automation systems. Troubleshoot quickly and easily with the oversized backlit LCD screen that displays clear results in bright light or complete dark with intuitive icons, and support of Class 1 to 8 PoE.
Key Features
- Determine if a switch port can provide enough power by reporting PoE class (0-8)
- Displays network switch speeds capabilities up to 10G
- Displays PoE injector voltage level
- Displays cable length, wiremap, cable ID and distance to fault
- Locate and trace cable or wire pair with digital and analog toning with included Intellitone Pro 200 Probe
- Included Remote IDs help quickly determine network layout
- Validate and troubleshoot your Industrial Ethernet copper cabling, reducing downtime in time-sensitive industrial networks
- Quickly pinpoint cable defects in facilities where network cables are exposed to vibration, flexing, moisture, temperature changes and EMI from motor drives and other devices
Description

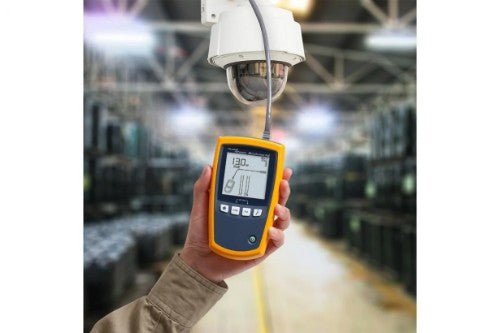

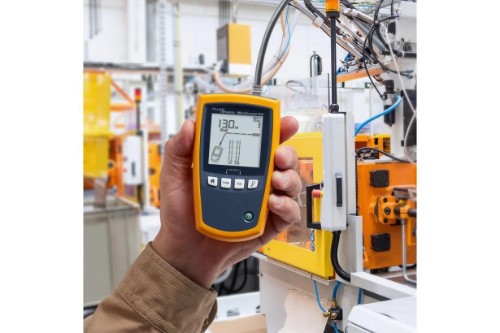

MicroScanner™ PoE finds common errors and switch power capacity. Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired. MicroScanner™ PoE performs continuity tests on all wires in a few seconds and displays results graphically so you can see opens, shorts, and cross wires. It also reports which end of the cable has a problem and reports the distance to an open connection within the cable.The MicroScanner™ PoE also allows for easy installation/maintenance on IT, Security, PoE lighting, Ethernet based HVAC devices and IP based Building Automation systems. Troubleshoot quickly and easily with the oversized backlit LCD screen that displays clear results in bright light or complete dark with intuitive icons, and support of Class 1 to 8 PoE.
Specifications
| Technical details | |
|---|---|
| Product type | PoE tester |
| Cables included | LAN (RJ-45) |
| Supported connectors | RJ-11, RJ-45 |
| Test type | PoE testing |
| Built-in display | Yes |
| Display type | LCD |
| On/off switch | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Product colour | Black, Blue, Yellow |
| Cable type | UTP, FTP, SSTP |
| Maximum cable length | 460 m |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 163 mm |
| Height | 36 mm |
| Weight | 300 g |
| Power | |
| Battery type | AA |
| Battery technology | Alkaline |
| Number of batteries supported | 2 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Storage pouch | Yes |
| Manual | Yes |
| Batteries included | Yes |
