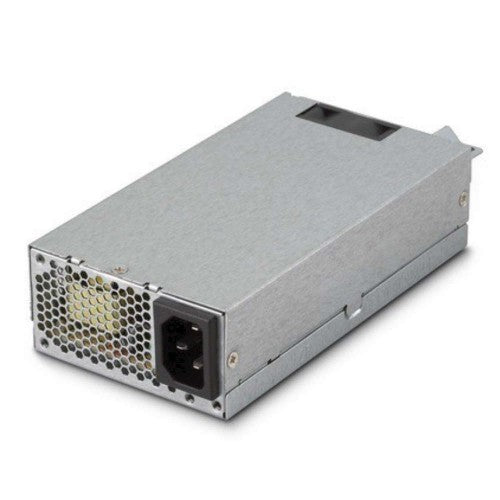

Description
250W, 115 - 230Vac, FLEX ATX, 80 PLUS, Active PFC
Key Features
- Certification: 80 PLUS
- High quality components
- Temperature controlled fan
- Overvoltage protection, overload protection, short circuit protection
- Operating temperature: 0°C up to 50°C
- Storage temperature: -20°C up to 80°C
- Certified up to 5000 m operating altitude
Description
Specifications
| Cooling | |
|---|---|
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS |
| Certification | CB 62368, CE, EMC, FCC, TUV, CUL, CCC, BSMI, UKCA, KC |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 250 W |
| AC input voltage | 90 -264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2 - 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+5V) | 80 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| Performance | |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Certification | CB 62368, CE, EMC, FCC, TUV, CUL, CCC, BSMI, UKCA, KC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 40.5 mm |
| Height | 81.5 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| 80 PLUS certification | 80 PLUS |
| Certification | CB 62368, CE, EMC, FCC, TUV, CUL, CCC, BSMI, UKCA, KC |
