Description
P750GM, 80 PLUS Gold, 750W, Active PFC, 120mm
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

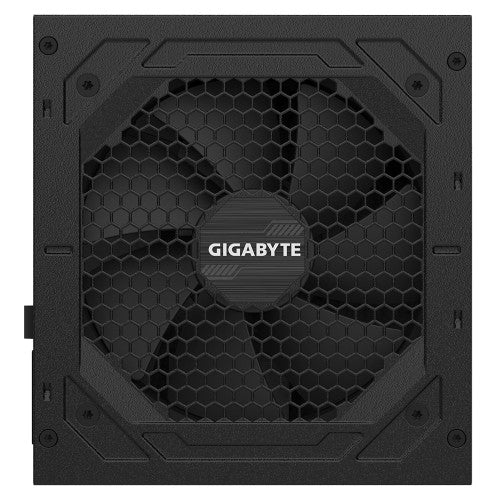

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Key Features
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 5 years warranty (Adjusted according to different regions)
Description
FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12-6 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power cable length | 120,500 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 12 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Harmonized System (HS) code | 84733020 |
