Description

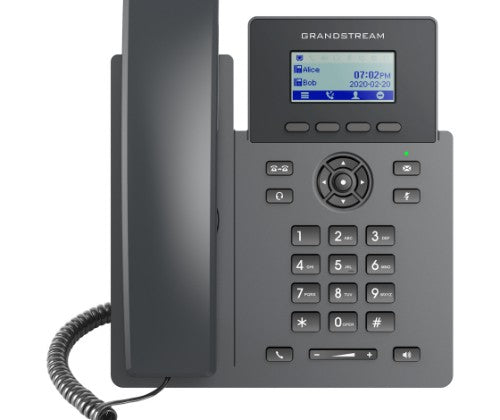

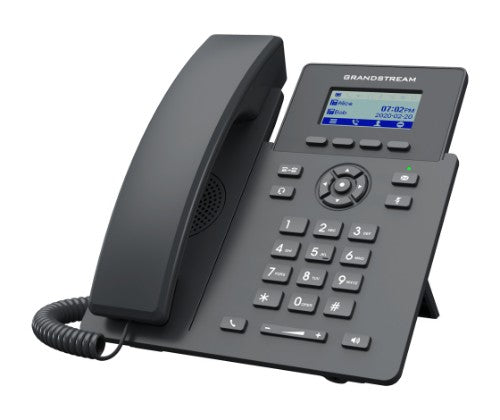

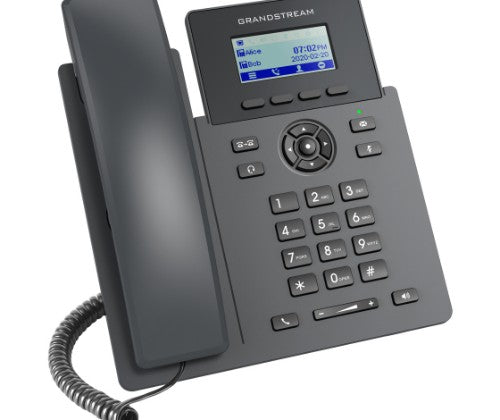

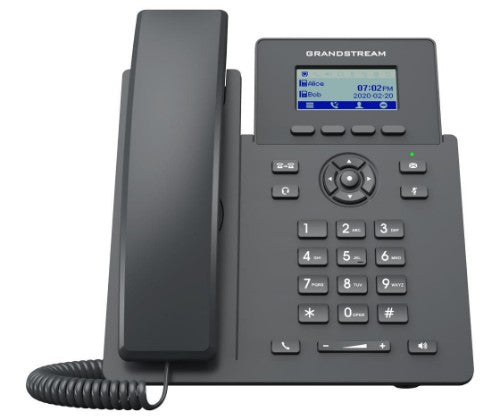

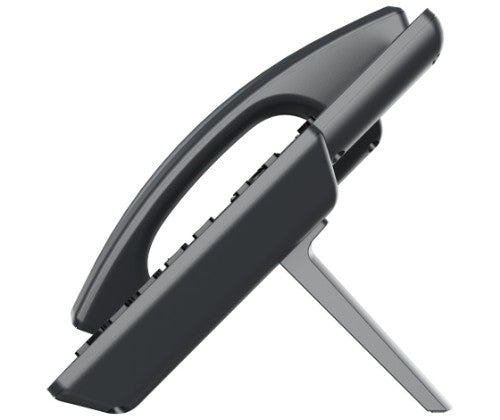

GRP2601P, 10/100 Ethernet, PoE, 132 x 48 (2.21") LCD, RJ-9, 208 x 180 x 63.4mm
Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.
Key Features
- 2 SIP account, 2 lines
- GDMS online device management and provisioning
- 5-way audio conferencing for easy conference calls
- Equipped with noise shield technology to minimize background noise
- Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
- The GRP2601P includes built-in PoE to power the device and give it a network connection
- Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
Description
Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), and is supported by Grandstream’s Device Management System (GDMS). Built for the basic needs of on-site or remote desktop workers the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.
Specifications
| Features | |
|---|---|
| Number of programmable keys | 4 |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Handset type | Wired handset |
| Firmware upgradeable | Yes |
| Product colour | Black |
| Technical details | |
| Number of programmable keys | 4 |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Answering machine | Yes |
| Handset type | Wired handset |
| Firmware upgradeable | Yes |
| Speakerphone | Yes |
| Harmonized System (HS) code | 85171800 |
| Security | |
| Security algorithms | 256-bit AES, MD5, SRTP, TLS |
| Password protection type | Supervisor, User |
| Design | |
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Password protection type | Supervisor, User |
| Phone features | |
| Call transfer | Yes |
| Answering machine | Yes |
| Call log entries | 800 |
| Lines quantity | 2 lines |
| Redialing | Yes |
| Conference call | Yes |
| Call waiting | Yes |
| Call pick up | Yes |
| Call park | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Management features | |
| Number of programmable keys | 4 |
| Firmware upgradeable | Yes |
| Display | |
| Touchscreen | No |
| Display resolution | 132 x 48 pixels |
| Display diagonal | 5.61 cm (2.21") |
| Display | LCD |
| Camera | |
| Front camera | No |
| Audio | |
| Voice codecs | AGC, CNG, G.711alaw, G.711u, G.722, G.723, G.726, G.729A, G.729B, OPUS, PLC, VAD, iLBC |
| Speakerphone | Yes |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Supported network protocols | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6 |
| Security algorithms | 256-bit AES, MD5, SRTP, TLS |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Colour | |
| Product colour | Black |

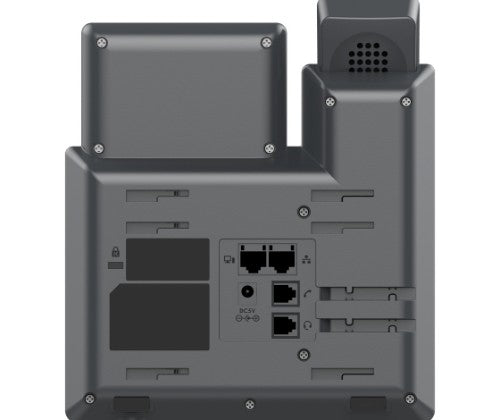

| Ports & interfaces | |
| RJ-9 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Certificates | |
| Certification | FCC: Part 15 Class B; FCC Part 68 HAC; CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004; IC: ICES-003; CS-03 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | -10 - 60% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 208 mm |
| Height | 63.4 mm |
| Weight | 650 g |
| Packaging content | |
| Number of handles included | 1 pc(s) |
