Description
1x FXS, 1x RJ45 10/100Mbp, 100 x 100 x 29.5 mm, 102 g

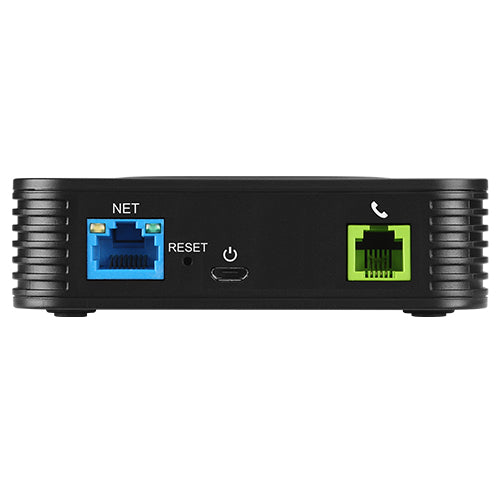

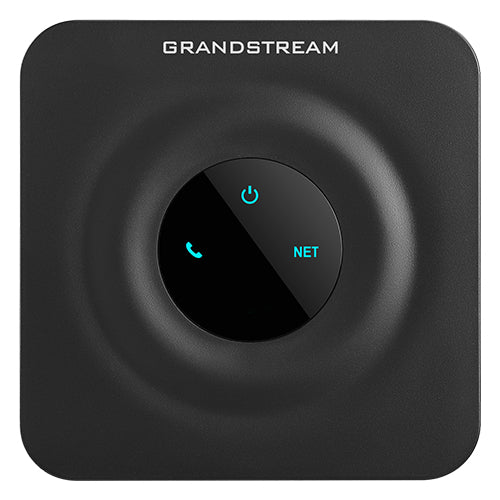

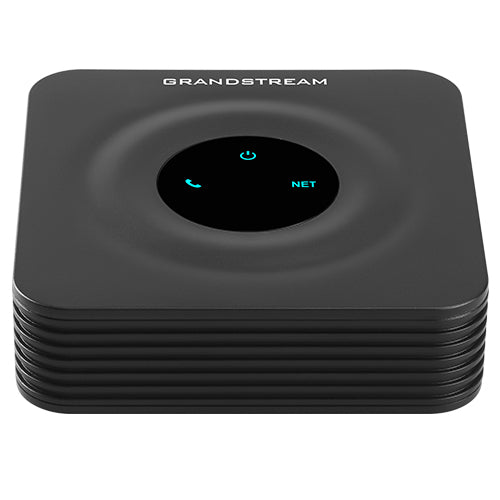

The HT801 v2 is a compact single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution.
Grandstream Device Management System
GDMS provides a FREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and model. This powerful cloud management platform adds robust security features to protect enterprise networks, including bank-grade TLS encryption from end-to-end, two-factor login authentication to protect your data security, two-way certificate verification and encryption of all device information. By offering a centralized, secure and zero-touch management for Grandstream endpoints, GDMS is ideal for enterprises, service providers and multi-site businesses as it allows them to easily deploy and manage large networks of Grandstream solutions. Visit gdms.cloud to sign up for free today!
Android and iOS mobile users can access the GDMS mobile app from any device by downloading for free through the app store, or get it on google play.
Key Features
- Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- LED Indicators - POWER, NET, PHONE
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
- Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Description
Easy-to-Use 1-Port ATAThe HT801 v2 is a compact single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution.
Grandstream Device Management System
GDMS provides a FREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and model. This powerful cloud management platform adds robust security features to protect enterprise networks, including bank-grade TLS encryption from end-to-end, two-factor login authentication to protect your data security, two-way certificate verification and encryption of all device information. By offering a centralized, secure and zero-touch management for Grandstream endpoints, GDMS is ideal for enterprises, service providers and multi-site businesses as it allows them to easily deploy and manage large networks of Grandstream solutions. Visit gdms.cloud to sign up for free today!
Android and iOS mobile users can access the GDMS mobile app from any device by downloading for free through the app store, or get it on google play.
Specifications
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Performance | |
| Control display unit | Yes |
| Product colour | Black |
| Protocols | |
| Supported protocols | TCP/IP/UDP, RTP/RTCP (RFC1889,1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ports & interfaces | |
| Foreign eXchange Station (FXS) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Micro-USB 2.0 ports quantity | 1 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Weight & dimensions | |
| Weight | 102 g |
| Width | 100 mm |
| Height | 29.5 mm |
| Depth | 100 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Indication | |
| LED indicators | Yes |
| Display | |
| Control display unit | Yes |
