Description

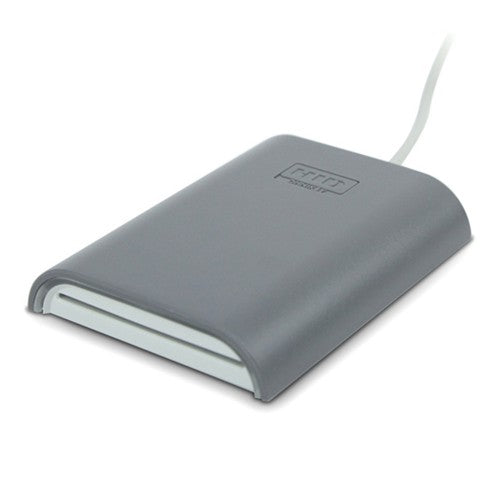

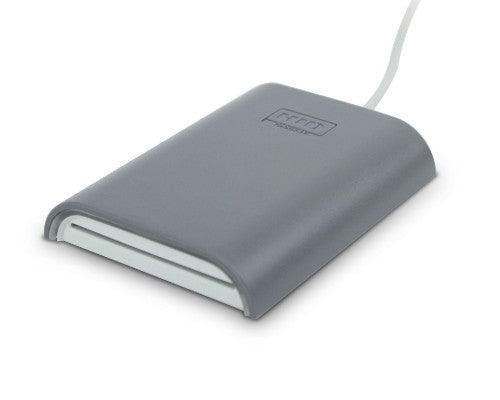

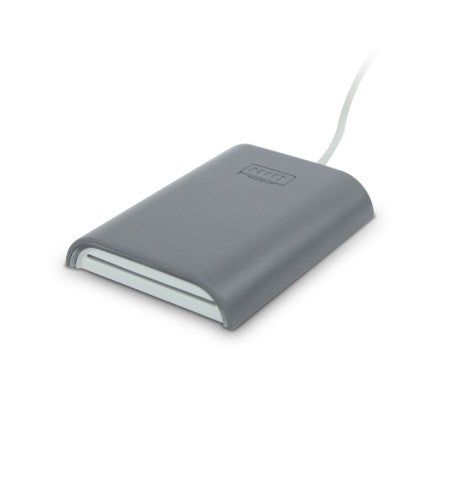

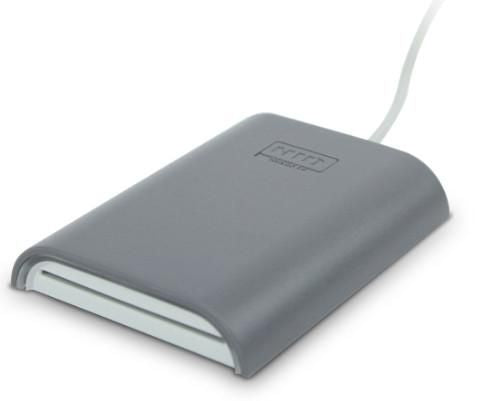

OMNIKEY 5422 Dual Interface Reader, Contact ID-1/Contactless 13.56MHz, CCID, IP54, 100g
The reader provides users with the convenience, speed and security for applications such as user authentication to PCs, software, cloud-based applications, networks and web sites.
The OK5422 eliminates the requirement for driver installation and is suitable to be used with standard PC or workstations, as well as with thin and zero clients.
Key Features
- Versatile – Ideal for end-user environments using both contact and contactless smart card technology and migration scenarios
- Leverages existing employee badge – Expands the usage of existing physical access cards to computer logon, as well as network and cloud applications
- Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system
- Increased security and improved user experience – Read and retrieve highly secure one-time passwords (OTP) from Seos® card
Description
The OMNIKEY® 5422 represents the ultimate combination of contact and contactless technology in a single device. The solution features a dual interface, PC-linked reader that reads / writes to both a 13.56 MHz contactless smart card and virtually any contact smart card to support environments where both contact and contactless smart card technologies are required.The reader provides users with the convenience, speed and security for applications such as user authentication to PCs, software, cloud-based applications, networks and web sites.
The OK5422 eliminates the requirement for driver installation and is suitable to be used with standard PC or workstations, as well as with thin and zero clients.
Specifications
| Features | |
|---|---|
| Placement supported | Indoor |
| International Protection (IP) code | IP54 |
| Housing material | Polycarbonate (PC) |
| Compliance industry standards | ISO7816 Class A/B/C |
| LED indicators | Yes |
| Product colour | Grey |
| Cable length | 1.5 m |
| Frequency | 13.56 MHz |
| Plug and Play | Yes |
| Mean cycles between failures (MCBF) | 100000 |
| Certificates | |
| Certification | CE, FCC, UL, KCC, RCM, ICES, WEEE |
| Technical details | |
| Placement supported | Indoor |
| International Protection (IP) code | IP54 |
| Housing material | Polycarbonate (PC) |
| Frequency | 13.56 MHz |
| Compliance industry standards | ISO7816 Class A/B/C |
| Plug and Play | Yes |
| Mean cycles between failures (MCBF) | 100000 |
| LED indicators | Yes |
| Product colour | Grey |
| Cable length | 1.5 m |
| Compliance certificates | RoHS |
| Design | |
| Placement supported | Indoor |
| International Protection (IP) code | IP54 |
| Housing material | Polycarbonate (PC) |
| LED indicators | Yes |
| Product colour | Grey |
| Cable length | 1.5 m |
| Ports & interfaces | |
| Compliance industry standards | ISO7816 Class A/B/C |
| Interface | USB 2.0 |
| Colour | |
| Product colour | Grey |
| Power | |
| USB powered | Yes |
| Power source | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android |
| Weight & dimensions | |
| Width | 71 mm |
| Height | 16 mm |
| Depth | 93 mm |
| Weight | 100 g |
| Sustainability | |
| Certification | CE, FCC, UL, KCC, RCM, ICES, WEEE |
