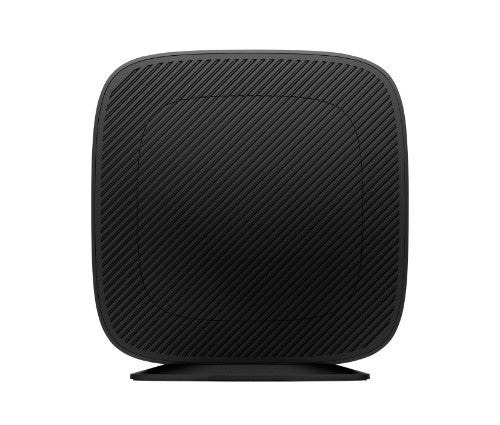

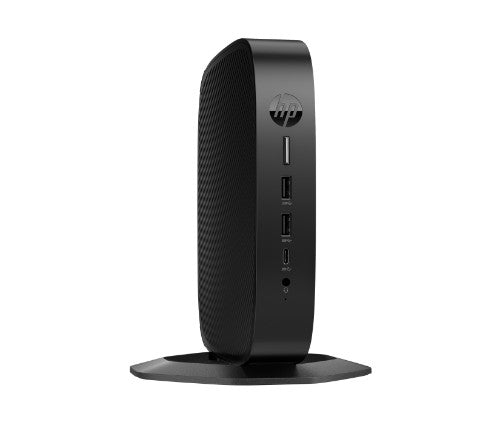

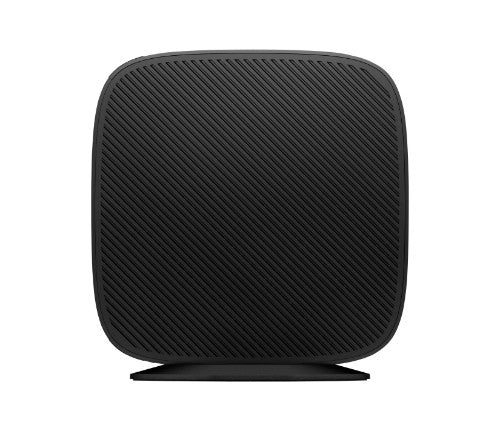

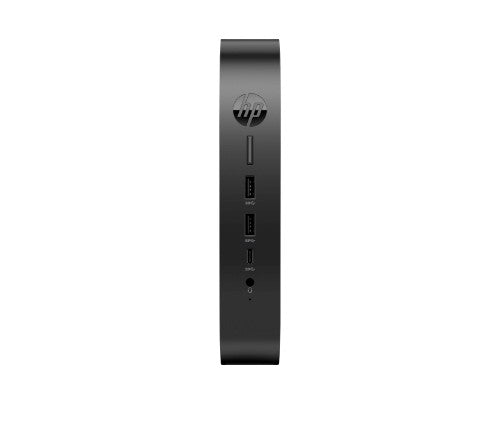

HP Elite t655, 2.1 GHz, AMD, AMD Ryzen Embedded, AMD Ryzen Embedded R2000 Series, R2314, 3.5 GHz
Description
HP Elite t655. Processor frequency: 2.1 GHz, Processor manufacturer: AMD, Processor family: AMD Ryzen Embedded. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 256 GB, Storage media: SSD, Storage drive interface: PCI Express. On-board GPU manufacturer: AMD, On-board graphics card model: AMD Radeon Graphics. Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax), Ethernet LAN data rates: 10,100,1000 Mbit/s
Specifications
| Processor |
|---|
| Processor boost frequency |
3.5 GHz |
| Processor frequency |
2.1 GHz |
| Processor model |
R2314 |
| Processor family |
AMD Ryzen Embedded |
| Processor cores |
4 |
| L2 cache |
2 MB |
| L3 cache |
4 MB |
| Processor manufacturer |
AMD |
| Processor cache |
2 MB |
| Processor threads |
4 |
| Processor generation |
AMD Ryzen Embedded R2000 Series |
| Memory |
|---|
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
32 GB |
| Hard drive |
|---|
| Storage drive interface |
PCI Express |
| Total storage capacity |
256 GB |
| Storage |
|---|
| Storage media |
SSD |
| Storage drive interface |
PCI Express |
| Total storage capacity |
256 GB |
| Number of storage drives installed |
1 |
| NVMe |
Yes |
| Graphics |
|---|
| On-board graphics card |
Yes |
| On-board graphics card model |
AMD Radeon Graphics |
| On-board GPU manufacturer |
AMD |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Video |
|---|
| On-board graphics card |
Yes |
| On-board graphics card model |
AMD Radeon Graphics |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WLAN controller model |
Realtek RTL8852BE |
| WLAN controller manufacturer |
Realtek |
| Antenna type |
2x2 |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| DisplayPorts quantity |
3 |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Product colour |
Black |
| Display |
|---|
| Display included |
No |
| Software |
|---|
| Operating system installed |
Windows 11 IoT Enterprise |
| Power |
|---|
| Power supply |
45 W |
| Certificates |
|---|
| Country of origin |
China |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
35 mm |
| Depth |
200 mm |
| Height |
200 mm |
| Weight |
1.12 kg |
| Technical details |
|---|
| Product colour |
Black |
| UNSPSC-code |
43211506 |
| Keyboard type |
USB |
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
|---|
| Mouse included |
Yes |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Other features |
|---|
| UNSPSC-code |
43211506 |
| Keyboard type |
USB |
