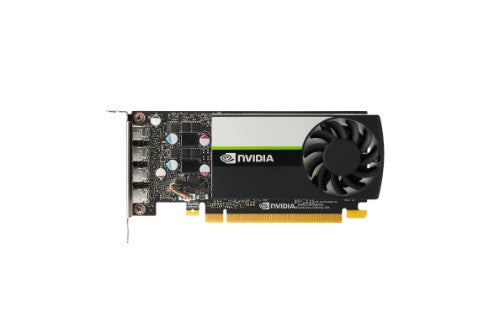

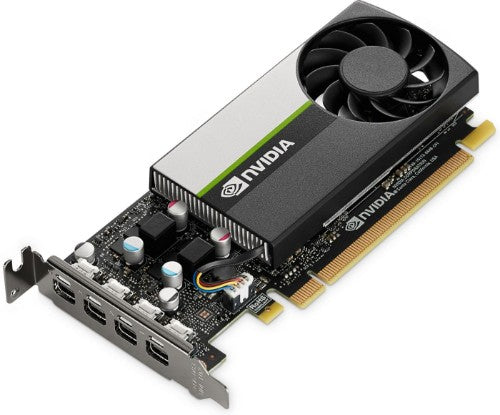

NVIDIA T400E 4 GB 4mDP Graphics
Key Features
- 4,096 MB GDDR6 graphics memory
- 384 streaming multiprocessor(SMX) cores
- Peak power consumption 30W in a cool and quiet single slot form factor
- 4 mini-DisplayPort connectors with PCI Express 3.0 x 16
Description
NVIDIA T400E 4GB mini-DP*4 GDDR6 Graphics Card is designed for professional designers and users, and embedded medical instruments and applications. Get the budget friendly highest performing graphics board to drive today's demanding professional workflows in a compact footprint. Flexible single-slot and low-profile formfactor makes this card compatible with even the most space and power-constrained workstation chassis.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Parallel processing technology support |
Not supported |
| CUDA cores |
384 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
T400 |
| Memory |
|---|
| Discrete graphics card memory |
4 GB |
| Memory bandwidth (max) |
80 GB/s |
| Memory bus |
64 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
|---|
| Mini DisplayPorts quantity |
4 |
| HDMI ports quantity |
0 |
| DisplayPort version |
1.4 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
0 |
| Interface type |
PCI Express x16 3.0 |
| Video |
|---|
| DirectX version |
12.07 |
| Shader model version |
5.17 |
| OpenGL version |
4.68 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| CUDA cores |
384 |
| Performance |
|---|
| DirectX version |
12.07 |
| Shader model version |
5.17 |
| OpenGL version |
4.68 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.2 |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Number of slots |
1 |
| Certification |
BSMI, FCC, ICES, CE, UK DoC, VCCI, KCC, RCM EMC, CB, Morocco DoC |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Power |
|---|
| Power consumption (max) |
30 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Number of slots |
1 |
| Weight |
123.5 g |
| Height |
155.9 mm |
| Length |
68.9 mm |
| Technical details |
|---|
| Cooling type |
Active |
| TV tuner integrated |
No |
| UNSPSC-code |
43201401 |
| Compatible products |
ThinkStation P Series - ThinkStation P3 Tower Gen 2
ThinkStation P Series - ThinkStation P3 Ultra SFF G2
ThinkStation P Series - ThinkStation P5
ThinkStation P Series - ThinkStation P7
ThinkStation P Series - ThinkStation P8 |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| System requirements |
|---|
| Windows operating systems supported |
Windows 11 |
| Packaging data |
|---|
| Package width |
325 mm |
| Package height |
85 mm |
| Package depth |
195 mm |
| Certificates |
|---|
| Certification |
BSMI, FCC, ICES, CE, UK DoC, VCCI, KCC, RCM EMC, CB, Morocco DoC |
| Other features |
|---|
| UNSPSC-code |
43201401 |
| Compatible products |
ThinkStation P Series - ThinkStation P3 Tower Gen 2
ThinkStation P Series - ThinkStation P3 Ultra SFF G2
ThinkStation P Series - ThinkStation P5
ThinkStation P Series - ThinkStation P7
ThinkStation P Series - ThinkStation P8 |
| Logistics data |
|---|
| Country of origin |
China, Vietnam |
