Description

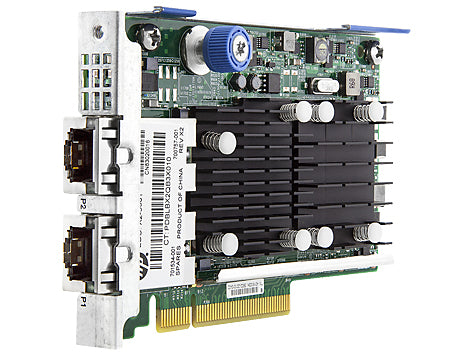

FlexFabric 10Gb 2-port 533FLR-T - PCIe 2.0 bus interface, 2 x 10GBASE-T ports
Description
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Broadcom BCM57810S |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3x |
| Full duplex | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Chipset | Broadcom BCM57810S |
| Internal | Yes |
| Weight & dimensions | |
| Width | 57.2 mm |
| Depth | 241.3 mm |
| Height | 190.5 mm |
| Weight | 450 g |
| Other features | |
| Chipset | Broadcom BCM57810S |
