Description

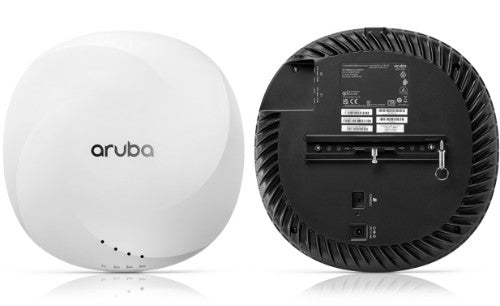

Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
AI-powered dynamic power save mode enables the HPE Aruba Networking 650 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization’s sustainability initiatives.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
The 650 series provides high availability with two 5 GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1 Gbps, 2.5 Gbps, or 5 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
The 650 series offers precision locationing with the support of FTM 802.11mc for precision distance ranging and built-in GPS receivers for high-accuracy indoor location measurements.
The 650 series offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
HPE Aruba Networking Central is an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying the management of campus, branch, remote, data center, and IoT networks from one dashboard.
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
You can deploy models with internal antennas or connectorized models that support external antennas to meet a range of environments.
HPE Aruba Networking Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in the country through automated notification and easy deployment of 6 GHz regulatory rules.
What is new supporting point:
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
Reasons To Buy
Energy Saving and IoT Ready
The HPE Aruba Networking 650 Series Campus Access Points can serve as flexible IoT platforms that bolster network security and provide coverage for a broad range of IoT devices without the need for network overlays. Integrated BLE and Zigbee support make it easier to deploy and manage IoT.Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
AI-powered dynamic power save mode enables the HPE Aruba Networking 650 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization’s sustainability initiatives.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
Flagship Wi-Fi 6E Performance
The HPE Aruba Networking 650 Series Campus Access Points, based on the 802.11ax standard, take advantage of the 6 GHz band through three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), delivering up to 7.8 Gbps maximum tri-band aggregate data rate.The 650 series provides high availability with two 5 GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1 Gbps, 2.5 Gbps, or 5 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
The 650 series offers precision locationing with the support of FTM 802.11mc for precision distance ranging and built-in GPS receivers for high-accuracy indoor location measurements.
Boost Security
The HPE Aruba Networking 650 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.The 650 series offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
AI-powered Cloud Management and Flexible Deployment
The HPE Aruba Networking 650 Series Campus Access Points can operate as stand-alone access points or with a gateway for greater scalability, security, and manageability.HPE Aruba Networking Central is an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying the management of campus, branch, remote, data center, and IoT networks from one dashboard.
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
You can deploy models with internal antennas or connectorized models that support external antennas to meet a range of environments.
HPE Aruba Networking Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in the country through automated notification and easy deployment of 6 GHz regulatory rules.
Description
The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these high-performance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate. The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.What is new supporting point:
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 5000 Mbit/s |
| Maximum data transfer rate | 4800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Bandwidth | 160 GHz |
| Spread spectrum method | DSSS |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channels quantity | 3 channels |
| Channel bandwidth | 160 MHz |
| Certification | UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Maximum data transfer rate | 4800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor. |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| Channels quantity | 3 channels |
| Network | |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Bandwidth | |
| Bandwidth | 160 GHz |
| Channel bandwidth | 160 MHz |
| Ports & interfaces | |
| I/O ports | Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Management features | |
| VLAN support | Yes |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Auto MDI/MDI-X | Yes |
| Bandwidth | 160 GHz |
| Spread spectrum method | DSSS |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channels quantity | 3 channels |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 4800 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Maximum data transfer rate (6 GHz) | 4800 Mbit/s |
| Bluetooth Low Energy (BLE) | Yes |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
| MACsec support | No |
| Compatible operating systems | AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor. |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Power | |
| Power consumption (max) | 22.7 W |
| Power consumption (typical) | 20.2 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status, System |
| Certification | UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.8 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Weight (imperial) | 1.8 kg (3.97 lbs) |
| Sustainability compliance | Yes |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Indication | |
| LED indicators | Status, System |
| Software | |
| Access Control List (ACL) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 56 mm |
| Weight | 1.8 kg |
| Height | 260 mm |
| Package width | 285 mm |
| Package depth | 285 mm |
| Package height | 95 mm |
| Package weight | 2.3 kg |
| Packaging data | |
| Package width | 285 mm |
| Package depth | 285 mm |
| Package height | 95 mm |
| Package weight | 2.3 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| I/O ports | Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack) |
| Weight (imperial) | 1.8 kg (3.97 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| System requirements | |
| Compatible operating systems | AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor. |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
