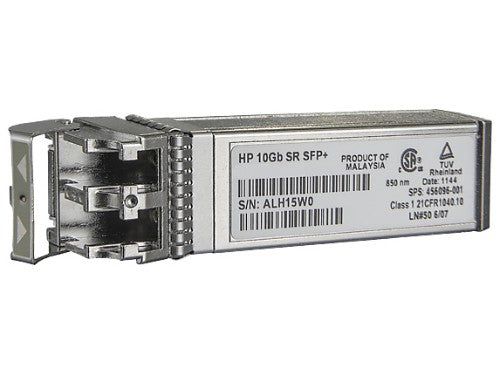

BladeSystem c-Class 10Gb SFP+ SR Transceiver
Description
.Specifications
| Performance | |
|---|---|
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125, 50/125 µm |
| Cabling technology | 10GBASE-SR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Compatible products | HP BladeSystem c-Class |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Compatible products | HP BladeSystem c-Class |
| Certification | MSA |
| Power | |
| Power consumption (typical) | 0.8 W |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Cabling technology | 10GBASE-SR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 55.7 mm |
| Depth | 13.8 mm |
| Height | 11.9 mm |
| Weight | 20 g |
| Technical details | |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125, 50/125 µm |
| Compatible products | HP BladeSystem c-Class |
| Cabling technology | 10GBASE-SR |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
