Description

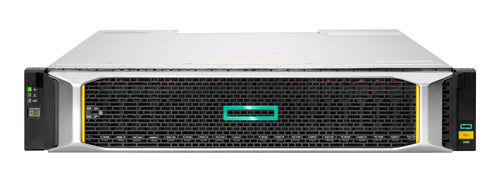

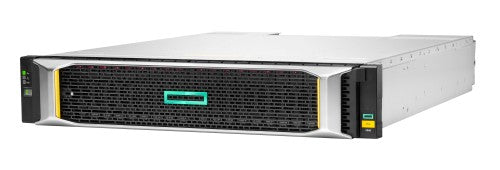

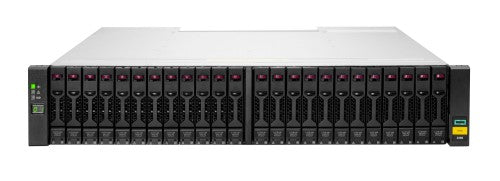

MSA 2060 10GBASE-T iSCSI SFF Storage
HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
What is new supporting point:
Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
Reasons To Buy
HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator
The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
Flexible, Modular Architecture That Facilitates Growth into the Future
The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of nine enclosures (10 total including the array).Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
Accelerate Applications Affordably
The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. [1]The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Description
Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads. [1]What is new supporting point:
Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Installed storage drive type | HDD+SSD |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drives installed | No |
| Maximum supported storage capacity | 1843.2 TB |
| Storage drive type | Up to 24 SFF HDD and/or SSD per array model |
| Ports & interfaces | |
| USB connectivity | No |
| Fibre Channel | Yes |
| Host ports | 8 |
| Technical details | |
| Device class | Large Enterprise Business |
| Number of fans | 2 fan(s) |
| Product colour | Silver, Black |
| Internal | Yes |
| Chassis type | Rack (2U) |
| Weight (imperial) | 4.99 kg (11 lbs) |
| Storage mirroring | No |
| SAN backup support | Yes |
| Insight manager support | No |
| Storage drive controller | HPE MSA 2060 10GBase-T iSCSI storage controllers, 4-ports each |
| Expansion description | 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
| Clustering support | Yes |
| Sustainability certificates | ENERGY STAR |
| Design | |
| Device class | Large Enterprise Business |
| Number of fans | 2 fan(s) |
| Product colour | Silver, Black |
| Internal | Yes |
| Chassis type | Rack (2U) |
| Performance | |
| Device class | Large Enterprise Business |
| Hard drive | |
| Storage drive type | Up to 24 SFF HDD and/or SSD per array model |
| System requirements | |
| Server operating systems supported | Windows Server 2022, Windows Server 2016, Windows Server 2019, Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 89 mm |
| Depth | 445 mm |
| Weight | 5 kg |
| Height | 508 mm |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Compatible operating systems | Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15 |
| Weight (imperial) | 4.99 kg (11 lbs) |
| Storage mirroring | No |
| SAN backup support | Yes |
| Insight manager support | No |
| Storage drive controller | HPE MSA 2060 10GBase-T iSCSI storage controllers, 4-ports each |
| Expansion description | 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
| Clustering support | Yes |
