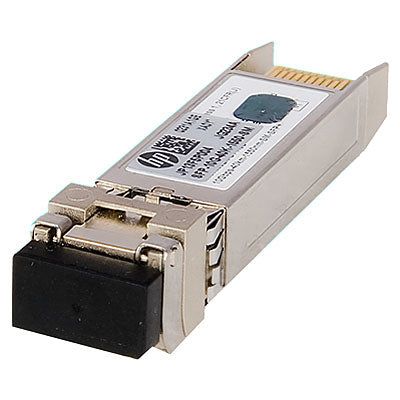

SFP (mini-GBIC) transceiver module - CWDM - 1610 nm
Description
Information technology professionals rely on HP quality to ensure maximum productivity. As the power of applications, processors, memory adapters and storage devices increases, high-end computer users are seeking ways to optimize their system performance. HP provides leading solutions, adding new levels of performance, availability, flexibility, and management.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
1610 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Cabling technology |
1000BASE-CWDM |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Yes |
| SFP transceiver standard |
CWDM |
| Hot-Plug support |
Yes |
| Features |
|---|
| Hot-Plug support |
Yes |
| Certification |
MSA |
| Certificates |
|---|
| Certification |
MSA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
10 - 85% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Cabling technology |
1000BASE-CWDM |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Height |
8.5 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Hot-Plug support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
1610 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Cabling technology |
1000BASE-CWDM |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
