Description

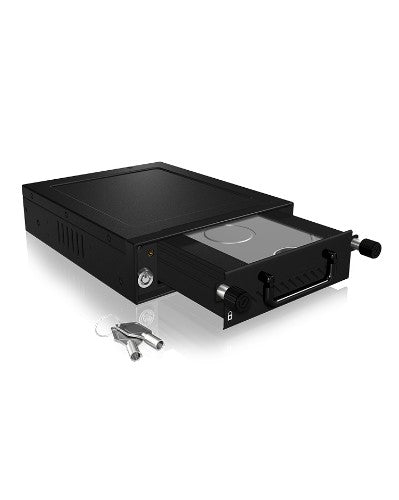

Mobile rack for 1x HDD/SSD for 1x 5.25" bay with lock and fan
This mounting frame for 2.5" and 3.5" SATA/SAS HDD in height of up to 2.54 cm is made out of the highest quality metal. It is to be mounted in a 5.25" bay. An integrated 30 mm fan makes sure the hot air from inside is transferred outside. This make this mobile rack to an ideal partner in the industry area.
Two is better
That is why our mobile rack has a lock to it. Additionally, two thumb screws can be added to the front of the rack for maximum security.
Faster on the way
The internal chipset support SATA III and SAS II with 6 Gbit/s. In this way the data is transmitted in a breeze. Thanks to the support of HotSwap and Plug & Play it is as easy as it can get to replace an HDD.
Description
That robust frameThis mounting frame for 2.5" and 3.5" SATA/SAS HDD in height of up to 2.54 cm is made out of the highest quality metal. It is to be mounted in a 5.25" bay. An integrated 30 mm fan makes sure the hot air from inside is transferred outside. This make this mobile rack to an ideal partner in the industry area.
Two is better
That is why our mobile rack has a lock to it. Additionally, two thumb screws can be added to the front of the rack for maximum security.
Faster on the way
The internal chipset support SATA III and SAS II with 6 Gbit/s. In this way the data is transmitted in a breeze. Thanks to the support of HotSwap and Plug & Play it is as easy as it can get to replace an HDD.
Specifications
| Features | |
|---|---|
| Country of origin | China |
| LED indicators | Yes |
| HDD size | 2.5/3.5" |
| Hot-swap | Yes |
| Key lock | Yes |
| Supported storage drive heights | 25.4 mm |
| Type | Storage drive tray |
| Size (imperial) | 13.3 cm (5.25") |
| Number of fans | 1 fan(s) |
| HDD interface | SATA, SATA II, SATA III, Serial Attached SCSI (SAS) |
| Fan diameter | 3 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Metal |
| Technical details | |
| Country of origin | China |
| LED indicators | Yes |
| HDD size | 2.5/3.5" |
| Hot-swap | Yes |
| Key lock | Yes |
| Supported storage drive heights | 25.4 mm |
| Type | Storage drive tray |
| Size (imperial) | 13.3 cm (5.25") |
| Number of fans | 1 fan(s) |
| HDD interface | SATA, SATA II, SATA III, Serial Attached SCSI (SAS) |
| Fan diameter | 3 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Metal |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 425 mm |
| Master (outer) case gross weight | 12.9 kg |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 180 mm |
| Package width | 155 mm |
| Package height | 50 mm |
| Package depth | 203 mm |
| Harmonized System (HS) code | 84733080 |
| Ports & interfaces | |
| External SATA ports quantity | 2 |
| Weight & dimensions | |
| Width | 146 mm |
| Weight | 968 g |
| Height | 43 mm |
| Depth | 180 mm |
| Packaging data | |
| Package weight | 1.11 kg |
| Package width | 155 mm |
| Package height | 50 mm |
| Package depth | 203 mm |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Cables included | SATA |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 425 mm |
| Master (outer) case gross weight | 12.9 kg |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 180 mm |
| Harmonized System (HS) code | 84733080 |
