Description
Enclosure for 1x M.2 NVMe SSD With USB 3.2 Gen 2 Type-C® interface and write protection
Well protected

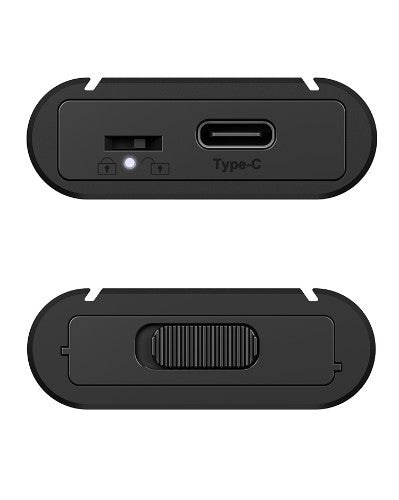

The loss of data is absolutely annoying, but can be avoided with the IB-1807MT-C31 from ICY BOX. Our enclosure for M.2 SSDs has a write protection that can be easily activated and deactivated again by a switch. So your data is always safe.
Simply fast

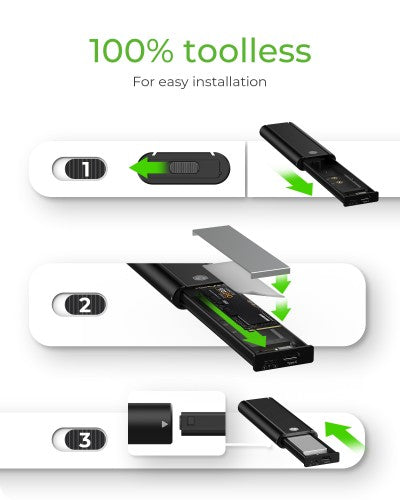

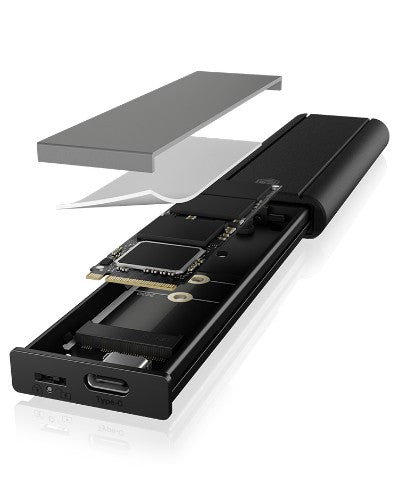

You can install your M.2 SSD in the IB-1807MT-C31 housing without any tools: simply open the latch, fix the SSD in the holder and close the housing again. You can then exchange data at speeds of up to 10 Gbit/s via the USB Type-C connection.
Absolutely flexible

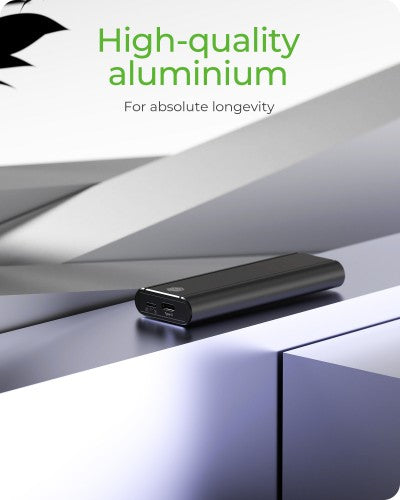

With the IB-1807MT-C31, you wrap your NVMe storage in black aluminium. This is not only chic, but also robust. In addition, the high-quality aluminium cools your storage. M.2 NVMe SSDs in the common sizes from 2230 to 2280.
Key Features
- External enclosure for M.2 SSDs
- Supports NVMe SSDs
- Toolless design for easy SSD installation
- USB 3.2 Gen 2* with up to 10 Gbit/s

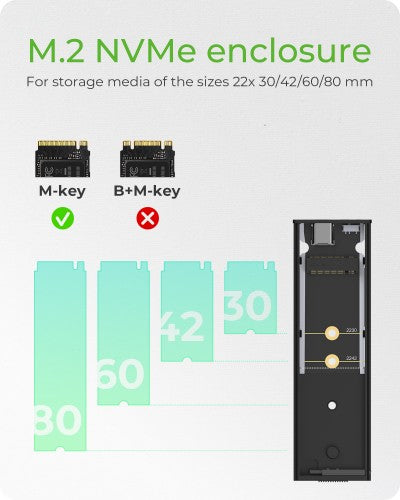

- M-Key socket for 22x 30/42/60/80 mm

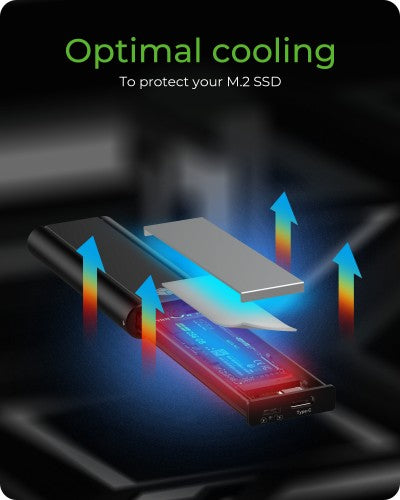

- High-grade aluminium enclosure for optimum heat dissipation
- Aluminium heat sink and thermal pads included
Description
The IB-1807MT-C31 is an external enclosure for M.2 NVMe SSDs. Your storage medium will find a safe place in the robust housing made of high-quality aluminium - without the use of tools. The aluminium also ensures optimal cooling of the SSD. USB 3.2 (Gen 2) ensures fast data transfer at up to 10 Gbit/s. The matching USB Type-C cable with Type-A adapter is supplied in the scope of delivery. The high-quality aluminium housing accommodates SSDs in all common M.2 form factors: from 2230 to 2242 and 2260 to 2280.Well protected
The loss of data is absolutely annoying, but can be avoided with the IB-1807MT-C31 from ICY BOX. Our enclosure for M.2 SSDs has a write protection that can be easily activated and deactivated again by a switch. So your data is always safe.
Simply fast
You can install your M.2 SSD in the IB-1807MT-C31 housing without any tools: simply open the latch, fix the SSD in the holder and close the housing again. You can then exchange data at speeds of up to 10 Gbit/s via the USB Type-C connection.
Absolutely flexible
With the IB-1807MT-C31, you wrap your NVMe storage in black aluminium. This is not only chic, but also robust. In addition, the high-quality aluminium cools your storage. M.2 NVMe SSDs in the common sizes from 2230 to 2280.
Specifications
| Storage | |
|---|---|
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | PCI Express |
| Supported storage drive heights | 22 mm |
| Supported storage drive lengths | 30,42,60,80 mm |
| NVMe | Yes |
| Ports & interfaces | |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB connectivity | Yes |
| USB connector type | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Technical details | |
| Plug and Play | Yes |
| Material | Aluminium, Plastic |
| LED indicators | Yes |
| Data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Cable length | 0.45 m |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Country of origin | China |
| Harmonized System (HS) code | 84718000 |
| Design | |
| Product type | SSD enclosure |
| Material | Aluminium, Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 0.45 m |
| Performance | |
| UASP support | Yes |
| Country of origin | China |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Power | |
| Power source type | USB |
| Packaging data | |
| Package weight | 210 g |
| Package width | 105 mm |
| Package depth | 27 mm |
| Package height | 200 mm |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 91 g |
| Width | 42 mm |
| Depth | 110 mm |
| Height | 15 mm |
| Package weight | 210 g |
| Cable length | 0.45 m |
| Package width | 105 mm |
| Package depth | 27 mm |
| Package height | 200 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C to USB Type-C |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Harmonized System (HS) code | 84718000 |
