Icy Dock MB991IK-B drive bay panel 2.5" Storage drive tray Black

SATA/SAS HDD & SSD Mobile Rack For 3.5” Device Bay - Full Metal, Host Interface: 7 pin SATA x 2, Drive Bay: 1x 3.5" Bay, Transfer Rate: 6Gb/sec, SECC, Matt Black

Key Features

• Rugged heavy duty full metal construction with suggested applications in Imaging, Medical, and Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
• Fits 1 x 5mm to 15mm 2.5” SAS/SATA HDD or SSD in external 3.5” drive bay
• Rugged heavy Duty Full Metal construction, perfect for enterprise applications
• Multi-Flow Technology - provides excellent passive cooling
• Anti-Vibration Technology - creates a safe environment for hard drives or SSDs
• Active Power Technology (APT) - individual led only powers up if there is drive installed in the drive bay
• EMI Grounding – protects hard drives from electrical damage
• Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure
• Anti-Dust Flap prevents dust from entering when device not used
• Removable EZ Slide Mini Tray system for easy maintenance
• Supports SAS 3.0 (Dual channel) / SATA 6Gbps and hot swap

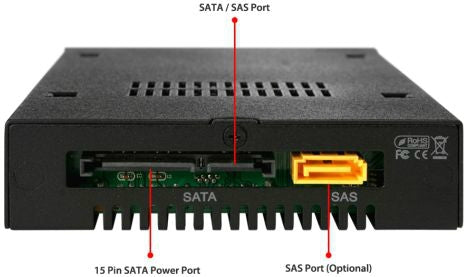

• Single SATA 15 Pin to power entire device

Description

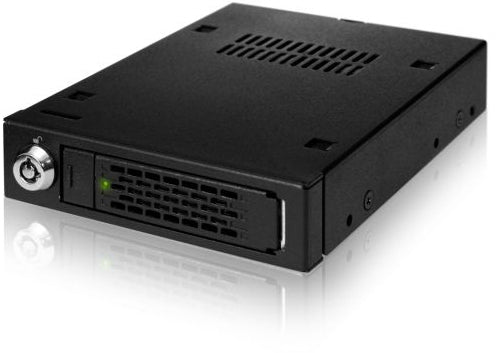

Introducing the Icy Dock MB991IK-B 2.5" SATA/SAS Mobile Rack for use in 3.5" device bays. This product is constructed of heavy duty metal to hold up in the toughest of conditions. It includes ventilation slots on the front, back, top and bottom for maximum airflow to keep both SATA and SAS drives running cool, and an LED is placed on the front of the device to give the user drive status at all times.

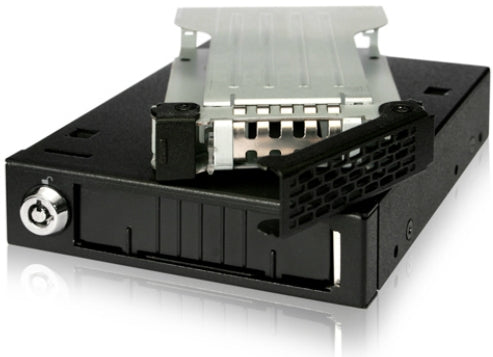

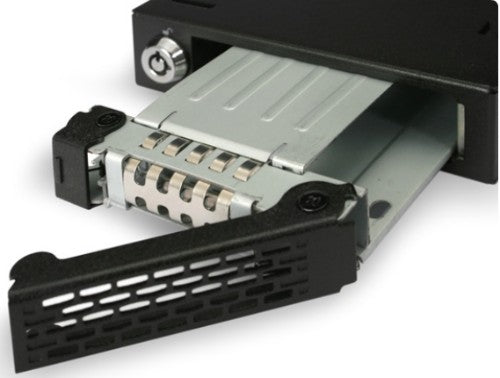

The MB991IK-B also utilizes our brand new EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using full metal so that they are durable for many lifetimes, but will not weigh you down when transporting your data from system to system. And featuring a full cage design, the added top drive cover provides added protection while moving the drive. The trays are also designed to accommodate 9.5mm, 12.5mm, and 15mm drives giving you the ultimate universal 2.5" hot swap bay.

Utilizing its small form factor, The MB991IK-B is perfect for use in industrial PCs and mobile DVR systems. It is built to function in the most demanding conditions including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The heavy metal design makes it ideal for placement in rugged environments. It also includes a key lock to safeguard sensitive data such as security recordings.

- For 2.5" SATA I / II / III and SAS HDD/SSD.
- Accommodates Drives with up to 15mm Height.
- Fits 3.5" Device Bay.

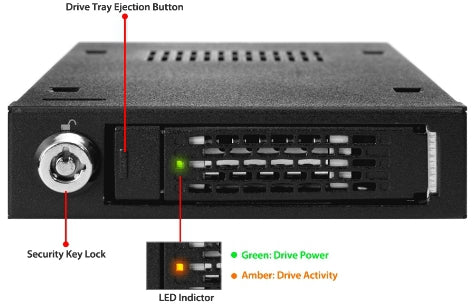

- Status LED on Front.

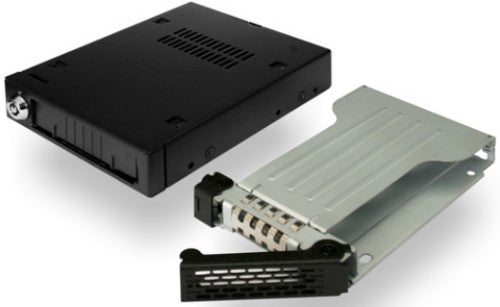

- Full Metal EZ Slide Mini Tray System with full cage design.
- Small form factor perfect for IPC and mobile DVR systems.
- Front, Rear, Top, and Bottom Ventilation Slots.
- Heavy Duty Full Metal Construction.
- Support SATA 6Gbps.
- Top cover for the tray adds extra drive protection.

Specifications

Features
LED indicators	Power, Status
Hot-swap	Yes
Type	Storage drive tray
Size (imperial)	2.5"
Data transfer rate	6 Gbit/s
Product colour	Black
Material	SECC
Technical details
LED indicators	Power, Status
Hot-swap	Yes
Type	Storage drive tray
Size (imperial)	2.5"
Data transfer rate	6 Gbit/s
Product colour	Black
Material	SECC
Dimensions (WxDxH)	101.5 x 135 x 25.6 mm
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Weight & dimensions
Width	101.5 mm
Weight	400 g
Height	25.6 mm
Depth	135 mm
Logistics data
Harmonized System (HS) code	84733080
