Description

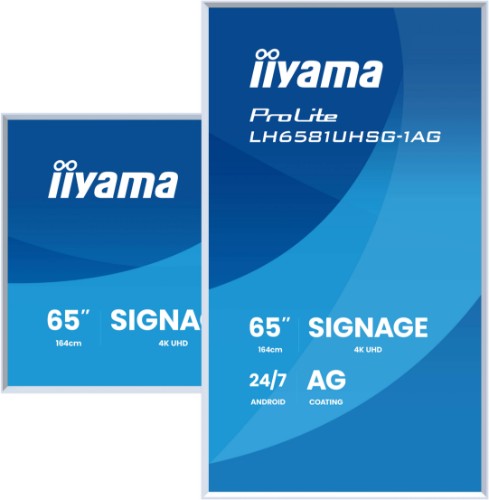

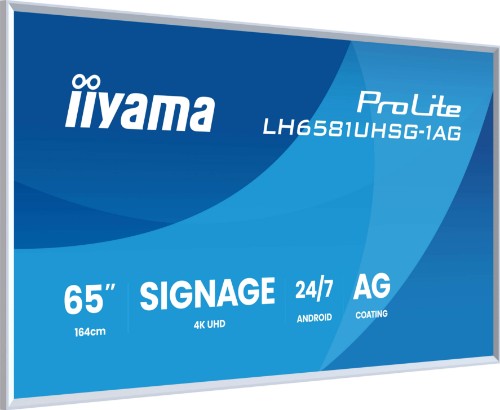

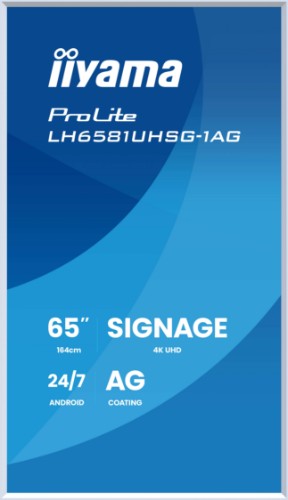

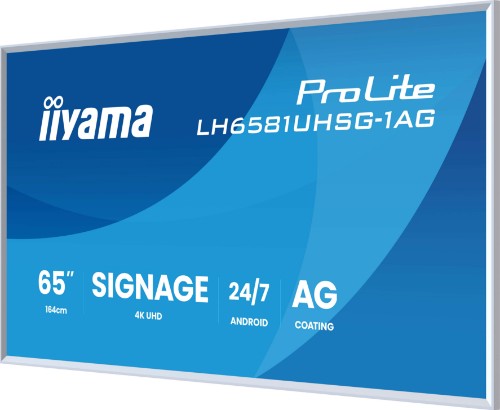

65" 4K UHD Digital Signage Display — Sleek, Flexible, and Ready for Any Creative Space
Reasons To Buy
Frame it Your Way
The magnetic removable frame is super easy to wrap in any design you like - match your mood, your room, or your brand. No tools, no hassle. Just pop it off, wrap it up, and you’re good to go. Custom style made simple. For a clean, frameless look, you simply leave the frame off - perfect for seamless integration in any environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Description
The ProLite LH6581UHSG-1AG is not just a digital signage display — it’s a statement piece for modern environments where design matters. This 65” 4K UHD screen combines cutting-edge performance with outstanding flexibility, making it the perfect fit for fashionable, artistic, and premium commercial spaces. What sets the LH6581UHSG-1AG apart is its innovative removable frame: magnetically attached and easy to customize with wraps or designs of your choice. Whether you want it to blend seamlessly into a stylish boutique, complement an art gallery, or add flair to a high-end lobby, this display adapts to your vision. Powered by Android 14 OS and equipped with iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is as smooth as its minimalist design suggests. With built-in WiFi, robust 24/7 operation, and exceptional connectivity options, the LH6581UHSG-1AG offers both form and function. Its anti-glare coating, slim profile, and versatile installation options with included wall mounting bracket, ensure that your message stands out — and your space stays elegant.Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Display diagonal | 163.8 cm (64.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.372 x 0.372 mm |
| Display diagonal (metric) | 164 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 28 - 160 kHz |
| Anti-glare screen | Yes |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 1.4 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (bottom) | 1.4 cm |
| Product colour | White |
| Panel mounting interface | 400 x 400 mm |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS) |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Bezel colour | White |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| HDCP | Yes |
| HDCP version | 1.4/2.0 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 118 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 118 kWh |
| Computer system | |
| Processor cores | 4 |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A73 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width | 1467.7 mm |
| Depth | 46 mm |
| Height | 842.4 mm |
| Weight | 26.3 kg |
| Display width | 1467.7 mm |
| Display depth | 46 mm |
| Display height | 842.4 mm |
| Display weight | 26.3 kg |
| Packaging data | |
| Package width | 1640 mm |
| Package depth | 178 mm |
| Package height | 1020 mm |
| Package weight | 33.9 kg |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | AC, HDMI, RS-232 |
| Packaging content | |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS) |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-C |
| Power supply type | Internal |
| Panel type | VA |
| Playback media | Yes |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, motorized stand, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| USB connector type | USB Type-C |
| Power supply type | Internal |
| Panel type | VA |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Bezel width (top) | 1.4 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (bottom) | 1.4 cm |
| Quick start guide | Yes |
| Energy efficiency scale | A to G |
