Description
17" Projective Capacitive 10pt touchscreen
Key Features
- TOUCH TECHNOLOGY - CAPACITIVE
- SCRATCH RESISTANCE
- SPEAKERS
- VESA
Reasons To Buy
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.Speakers
This LED monitor is equipped with two stereo speakers.VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.Description

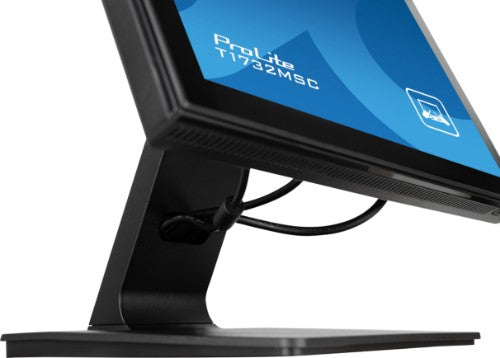

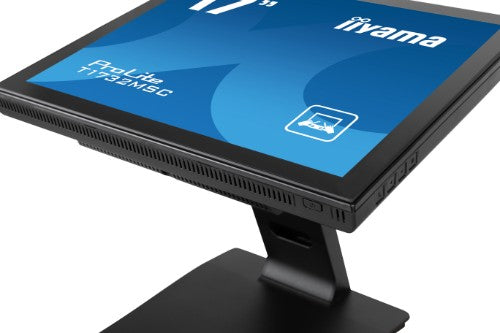

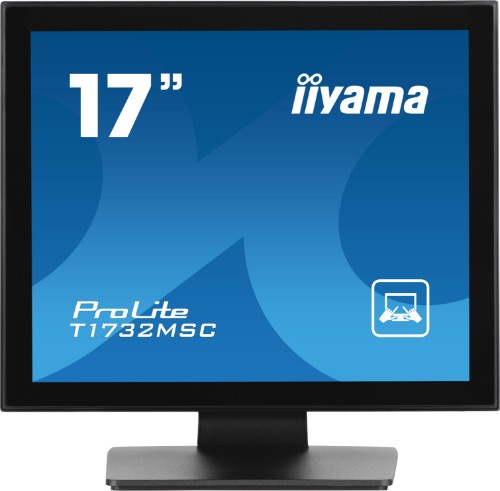

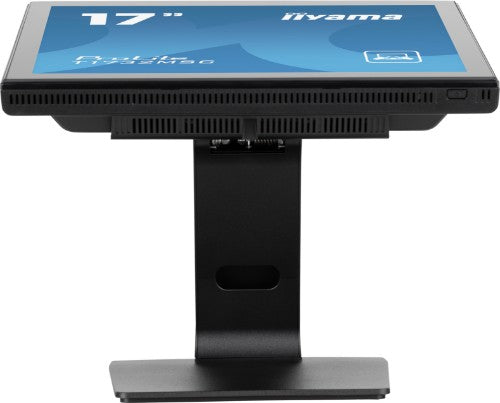

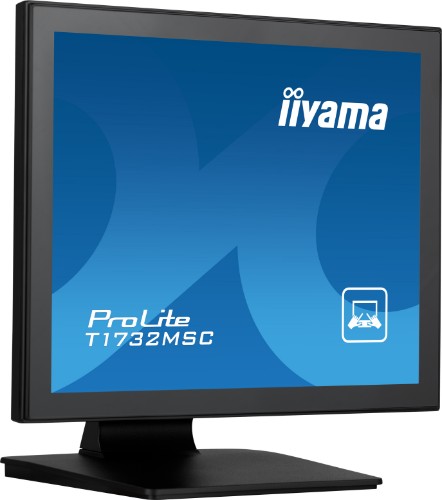

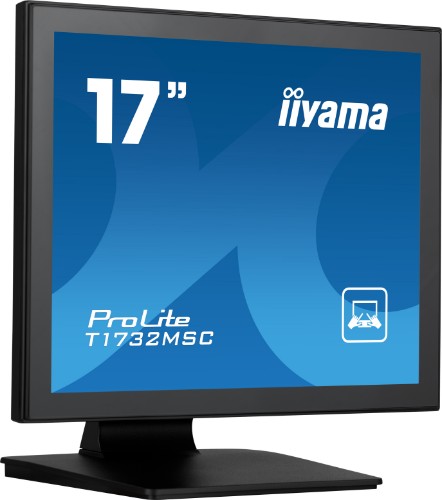

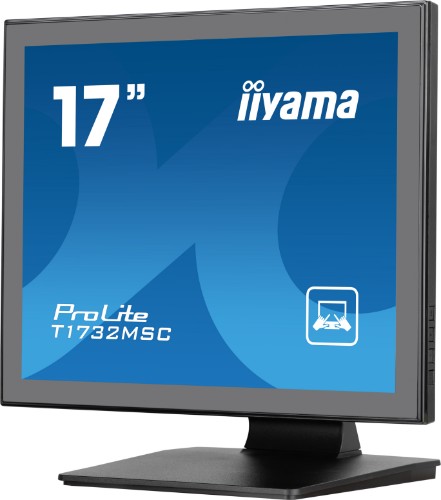

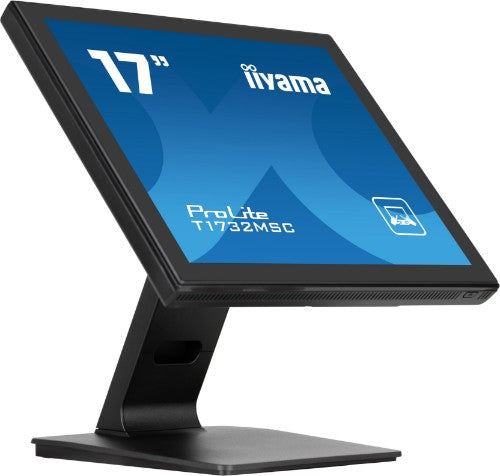

The T1732MSC-B1S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 5:4 |
| HD type | SXGA |
| Display technology | LED |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Aspect ratio | 5:4 |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display resolution | 1280 x 1024 pixels |
| Response time | 5 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 43 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 225 cd/m² |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP54 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | No |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio input | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Technical details | |
| Cable lock slot | Yes |
| Placement supported | Indoor |
| HDMI | Yes |
| Product colour | Black |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 225 cd/m² |
| Built-in processor | No |
| Power supply type | Internal |
| Active display area (W x H) | 338 x 270.5 mm |
| Weight (with stand) | 4.9 kg |
| Touch method | stylus, finger, glove (latex) |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 20 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11.9 kWh |
| Energy consumption (HDR) per 1000 hours | 0 kWh |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 4.9 kg |
| Width | 387 mm |
| Weight | 4.9 kg |
| Height | 378 mm |
| Depth | 240 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Sustainability | |
| Sustainability certificates | ErP |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 225 cd/m² |
| Built-in processor | No |
| Active display area (W x H) | 338 x 270.5 mm |
| Placement supported | Indoor |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP54 |
| Width | 387 mm |
| Weight | 4.9 kg |
| Height | 378 mm |
| Depth | 240 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Quick start guide | Yes |
| HDMI | Yes |
| Power supply type | Internal |
| Ethernet LAN | No |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
