Description
27” Optical Bonded PCAP 10pt touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and a flexible stand
Reasons To Buy
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.IPS Technology
Ensure perfect visibility from any position - The IPS panel delivers vivid, consistent colors and wide viewing angles, ideal for dynamic retail environments and busy commercial spaces.Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.Description

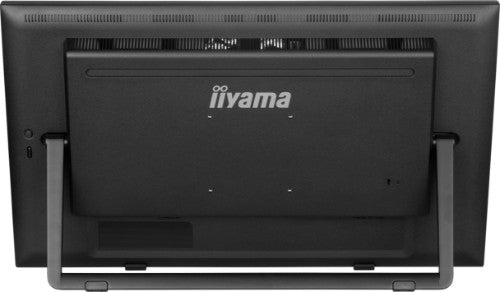

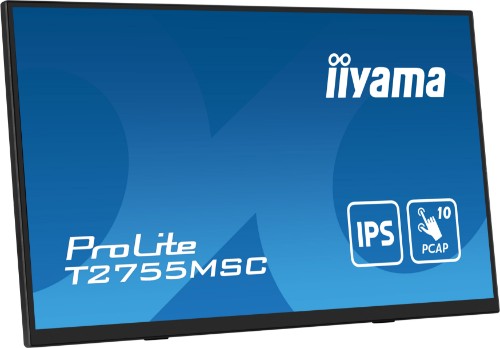

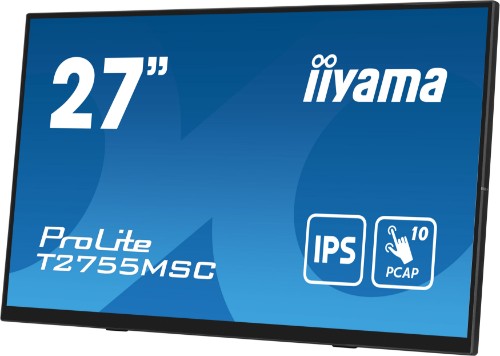

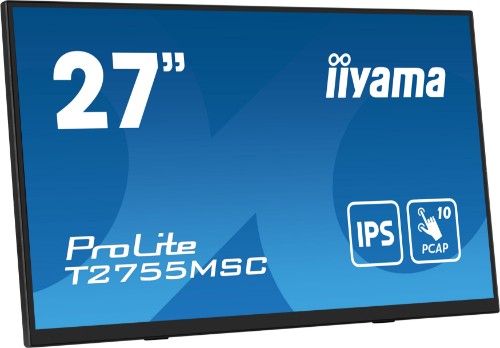

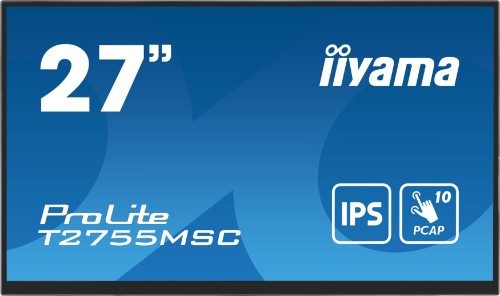

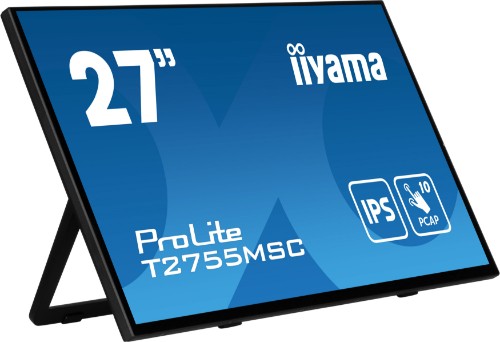

The ProLite T2755MSC with its Full HD (1920x1080) resolution and with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of applications.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 400 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.2 million colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 60 Hz |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Backlight type | LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 400 cd/m² |
| Touchscreen type | Tabletop |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 68.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 360 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Mean time between failures (MTBF) | 50000 h |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Feet colour | Black |
| Product colour | Black |
| Front bezel colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Technical details | |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Product colour | Black |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch) |
| Front bezel colour | Black |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cTUVus, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Packaging content | spiral tube |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 360 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 597 x 336 mm |
| Weight (with stand) | 5.8 kg |
| Touch method | stylus, finger, glove (latex) |
| Surface hardness | 7H |
| Touchscreen type | Tabletop |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 30 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 20.6 kWh |
| Weight & dimensions | |
| Width (with stand) | 614 mm |
| Depth (with stand) | 49 mm |
| Height (with stand) | 364.5 mm |
| Weight (with stand) | 5.8 kg |
| Package width | 710 mm |
| Package depth | 130 mm |
| Package height | 460 mm |
| Package weight | 7.3 kg |
| Width | 614 mm |
| Weight | 5.8 kg |
| Height | 364.5 mm |
| Depth | 49 mm |
| Packaging data | |
| Package width | 710 mm |
| Package depth | 130 mm |
| Package height | 460 mm |
| Package weight | 7.3 kg |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | spiral tube |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 360 cd/m² |
| Active display area (W x H) | 597 x 336 mm |
| USB ports quantity | 2 |
| Mean time between failures (MTBF) | 50000 h |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch) |
| Touch method | stylus, finger, glove (latex) |
| Width | 614 mm |
| Weight | 5.8 kg |
| Height | 364.5 mm |
| Depth | 49 mm |
| Positional accuracy | 2 mm |
| Compliance certificates | CE, cTUVus, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Control panel | Press/enter, right/volume, left/eco/exit, up/signal select, down, power |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Manual | Yes |
| Display brightness (peak) | 400 cd/m² |
| Touchscreen type | Tabletop |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
