Description

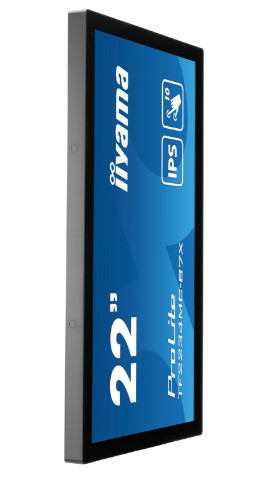

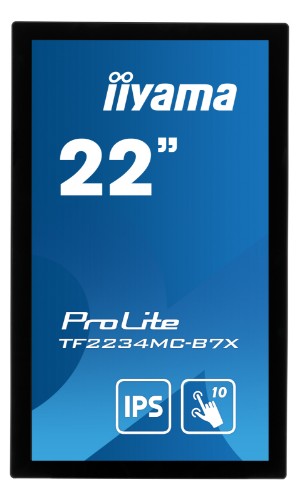

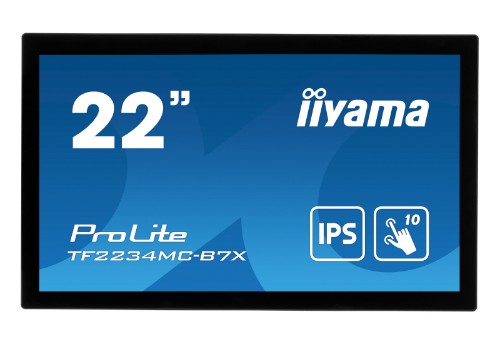

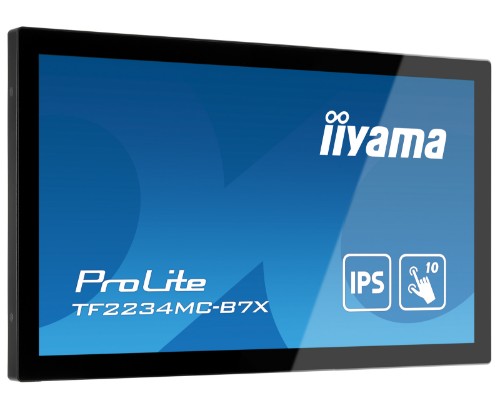

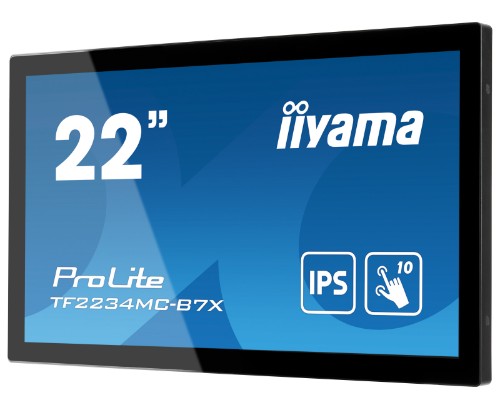

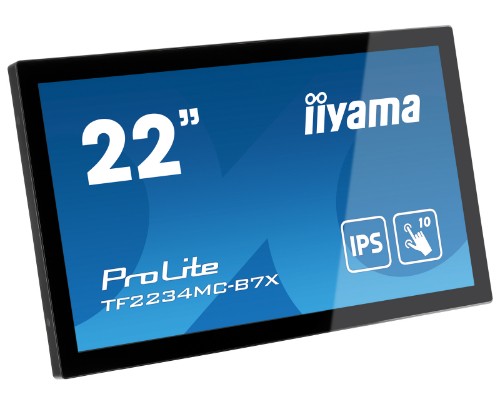

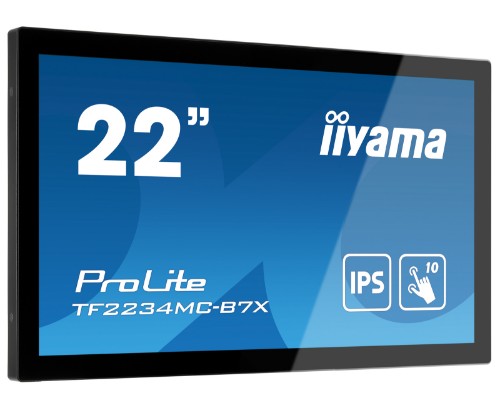

22" 10pt touch Open Frame monitor with IPS panel and touch through glass function
Reasons To Buy
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.Description
The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 305 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 1.5 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Placement supported | Horizontal/Vertical |
| HDMI | Yes |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Built-in microphone | No |
| Product colour | Black |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Products per pallet | 48 pc(s) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Pallet net width | 109 cm |
| Pallet net height | 109 cm |
| Pallet net length | 192.7 cm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 305 cd/m² |
| Power supply type | External |
| Weight (with stand) | 4.4 kg |
| Touch method | stylus, finger, glove (latex) |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |

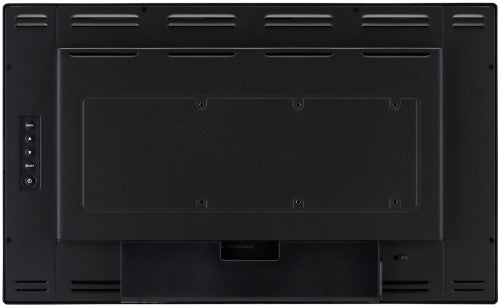

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 18 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Weight & dimensions | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Weight (without stand) | 4.4 kg |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Width | 517.5 mm |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Depth | 46 mm |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 305 cd/m² |
| AC adapter included | Yes |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP65 |
| Width | 517.5 mm |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Depth | 46 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Products per pallet | 48 pc(s) |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Harmonized System (HS) code | 85285210 |
| Pallet net width | 109 cm |
| Pallet net height | 109 cm |
| Pallet net length | 192.7 cm |
