Description
12.1’’ PCAP 10pt touchscreen solution for pick-up points
Key Features
- Semi outdoor solution
- Touch through-glass
- Anti-fingerprint coating
- Touch technology - Capacitive
- Open frame brackets
Reasons To Buy
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.Open frame brackets

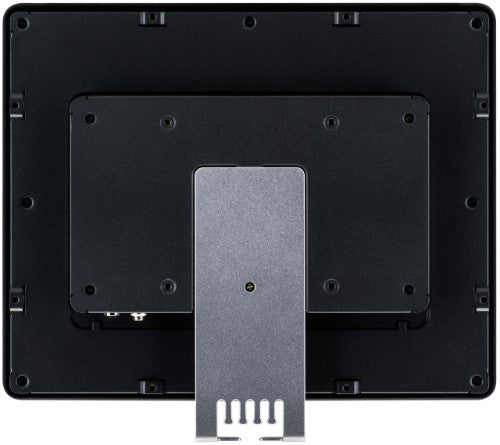

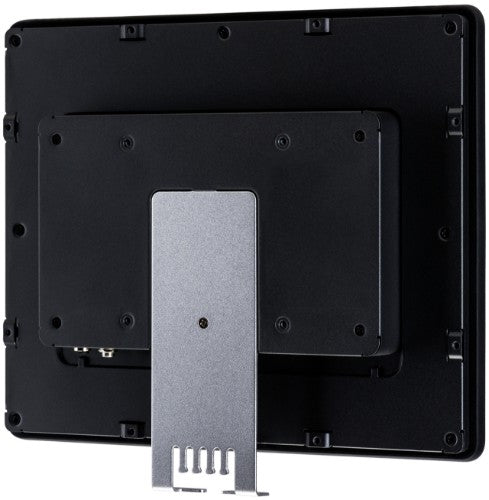

This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.Description

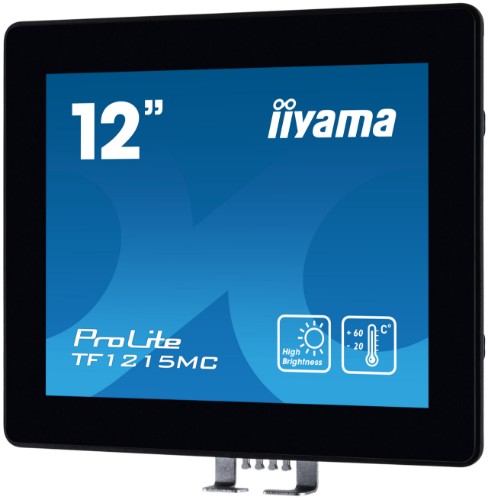

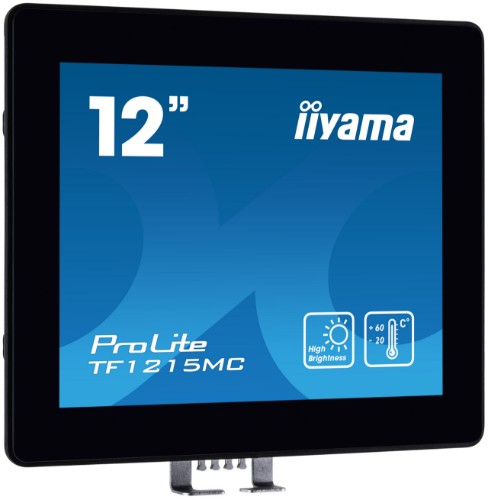

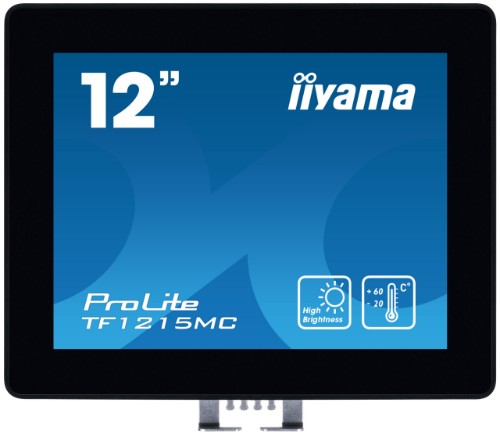

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 540 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.2 million colours |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.24 x 0.24 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 24.6 cm |
| Viewable size, vertical | 18.4 cm |
| Display resolution | 1024 x 768 pixels |
| Response time | 25 ms |
| Display diagonal | 30.7 cm (12.1") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 31 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 450 cd/m² |
| Performance | |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Multimedia | |
| Built-in camera | No |
| Design | |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3.15 mm |
| Camera | |
| Built-in camera | No |

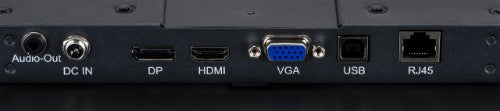

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio output | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 248 mm |
| Depth (without stand) | 41.5 mm |
| Width (without stand) | 308.5 mm |
| HDMI | Yes |
| Display viewable area (HxV) | 245.8 x 184.3 mm |
| Product colour | Black |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Front bezel colour | Black |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Packaging content | AC adapter, external control pad |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 450 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 245.8 x 184.3 mm |
| Weight (with stand) | 2.1 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 0.55 W |
| Power consumption (typical) | 10 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Height (without stand) | 248 mm |
| Depth (without stand) | 41.5 mm |
| Width (without stand) | 308.5 mm |
| Width (with stand) | 308.5 mm |
| Depth (with stand) | 41.5 mm |
| Height (with stand) | 248 mm |
| Weight (with stand) | 2.1 kg |
| Weight (without stand) | 2.1 kg |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 355 mm |
| Package weight | 3.9 kg |
| Width | 308.5 mm |
| Weight | 2.1 kg |
| Height | 248 mm |
| Depth | 41.5 mm |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 355 mm |
| Package weight | 3.9 kg |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| AC adapter included | Yes |
| Indication | |
| LED indicators | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter, external control pad |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 450 cd/m² |
| Active display area (W x H) | 245.8 x 184.3 mm |
| AC adapter included | Yes |
| Display viewable area (HxV) | 245.8 x 184.3 mm |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | finger, glove (latex), capacitive stylus |
| International Protection (IP) code | IP65 |
| Width | 308.5 mm |
| Weight | 2.1 kg |
| Height | 248 mm |
| Depth | 41.5 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| Height (without stand) | 248 mm |
| Depth (without stand) | 41.5 mm |
| Width (without stand) | 308.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
