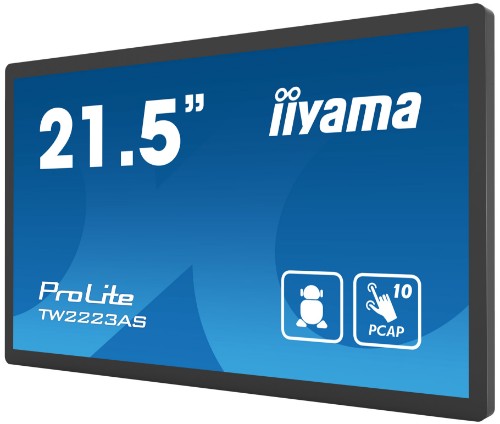

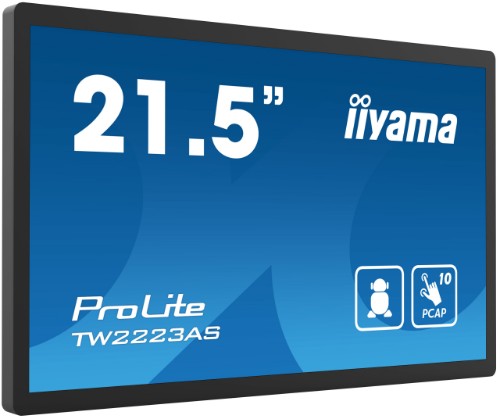

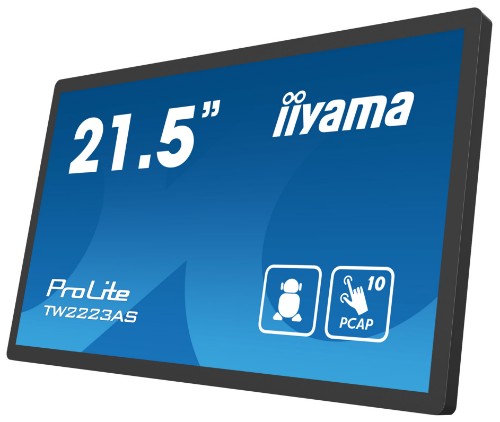

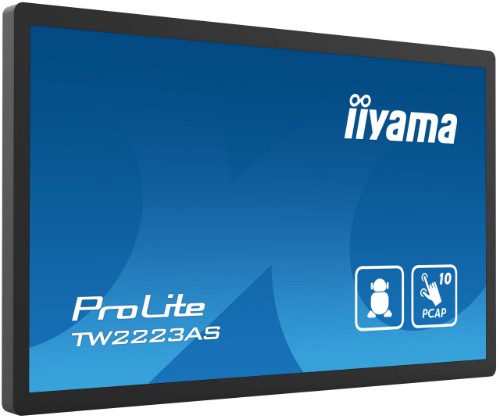

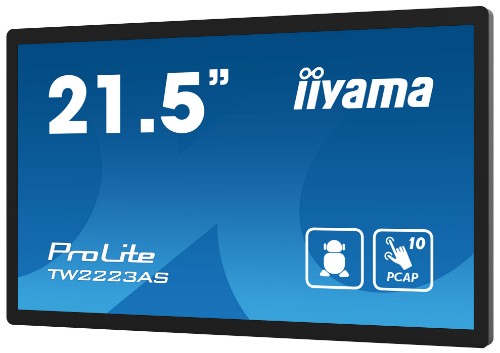

21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design
Reasons To Buy
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
24/7
24/7 displays are designed for a continuous operation.
Speakers
This LED monitor is equipped with two high quality stereo speakers.
Description
The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
Specifications
| Display |
|---|
| Panel type |
VA |
| Display number of colours |
16.7 million colours |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Active display area (W x H) |
478 x 269.5 mm |
| Display diagonal |
54.6 cm (21.5") |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
345 cd/m² |
| HD type |
Full HD |
| Response time |
18 ms |
| Contrast ratio (typical) |
3000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.248 x 0.248 mm |
| Display diagonal (metric) |
54.6 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 84 kHz |
| Display brightness (peak) |
400 cd/m² |
| Touchscreen technology |
Projected capacitive system |
| Surface hardness |
6H |
| Glass thickness |
2.9 mm |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| HDMI input ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
23 W |
| Power consumption (standby) |
0.5 W |
| Computer system |
|---|
| Computer system |
Yes |
| Processor cores |
2 |
| Processor family |
ARM Rockchip |
| Processor model |
RK3399 |
| Processor frequency |
1.8 GHz |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Built-in processor |
Yes |
| Google applications |
Google Chrome, Gmail, Google Calendar |
| On-board graphics card model |
ARM Mali-T860 MP4 |
| Operating system version |
12 |
| Weight & dimensions |
|---|
| Width (with stand) |
504.5 mm |
| Height (with stand) |
302 mm |
| Depth (with stand) |
32 mm |
| Width |
504.5 mm |
| Depth |
32 mm |
| Height |
302 mm |
| Weight |
3.61 kg |
| Weight (with stand) |
3.61 kg |
| Display width |
504.5 mm |
| Display depth |
32 mm |
| Display height |
302 mm |
| Display weight |
3.61 kg |
| Packaging data |
|---|
| Package width |
640 mm |
| Package depth |
121 mm |
| Package height |
410 mm |
| Package weight |
5.98 kg |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |
| Certificates |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
External |
| Panel type |
VA |
| Cable management |
Yes |
| Depth (without stand) |
32 mm |
| Brightness |
345 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
3.61 kg |
| Height (without stand) |
302 mm |
| Audio out (mini jack) |
1 |
| Weight (with stand) |
3.61 kg |
| User controls |
Power switch |
| Sustainability certificates |
ErP |
| Compliance certificates |
CE, EAC, REACH, RoHS, UKCA, WEEE |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Thin Client |
|---|
| Processor family |
ARM Rockchip |
| Processor model |
RK3399 |
| Processor frequency |
1.8 GHz |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Other features |
|---|
| Power supply type |
External |
| Panel type |
VA |
| Cable management |
Yes |
| Depth (without stand) |
32 mm |
| Brightness |
345 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
3.61 kg |
| Height (without stand) |
302 mm |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| Width (with stand) |
504.5 mm |
| Viewable size, vertical |
26.9 cm |
| Viewable size, horizontal |
47.8 cm |
| Mean time between failures (MTBF) |
50000 h |
| Height (with stand) |
302 mm |
| Digital horizontal frequency |
30 - 84 kHz |
| Depth (with stand) |
32 mm |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Built-in camera |
No |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Weight (with stand) |
3.61 kg |
| Display brightness (peak) |
400 cd/m² |
