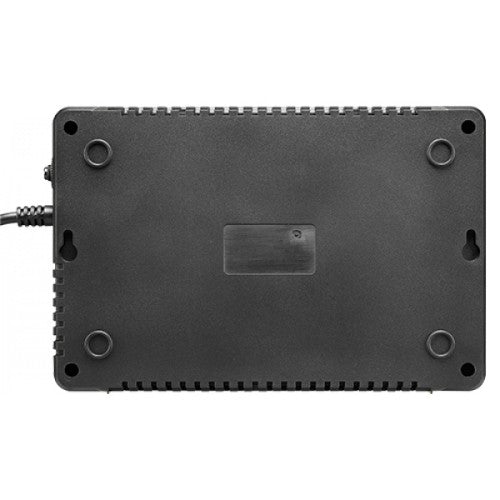

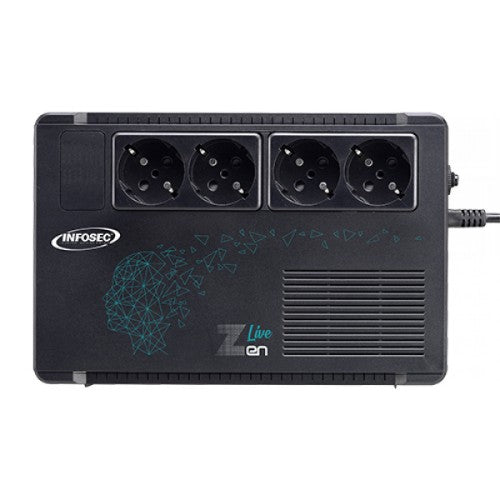

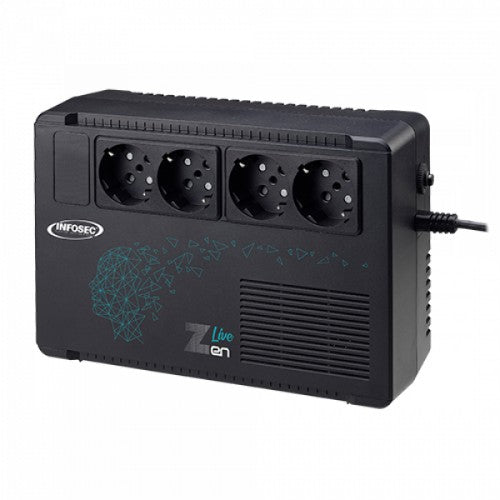

Infosec Zen Live 650 uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 390 W 4 AC outlet(s)

Infosec Zen Live 650, Line-Interactive, 0.65 kVA, 390 W, Sine, 162 V, 290 V

Description

Infosec Zen Live 650. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 390 W. AC outlet types: Type E / F, AC outlets quantity: 4 AC outlet(s). Battery capacity: 5 Ah, Battery voltage: 12 V, Typical backup time at full load: 8 min. Product colour: Black, Certification: CE. Width: 163 mm, Depth: 90 mm, Height: 245 mm

Specifications

Power
Output power	390 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power factor	0.6
Output power capacity	0.65 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Power protection features	Overcharge, Overdischarge, Overload
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Output power	390 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power protection features	Overcharge, Overdischarge, Overload
Power factor	0.6
Output power capacity	0.65 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type E / F
Battery
Battery voltage	12 V
Battery capacity	5 Ah
Typical backup time at full load	8 min
Design
LED indicators	Yes
Product colour	Black
Certification	CE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Weight	4 kg
Width	163 mm
Height	245 mm
Depth	90 mm
Certificates
Certification	CE
