Description

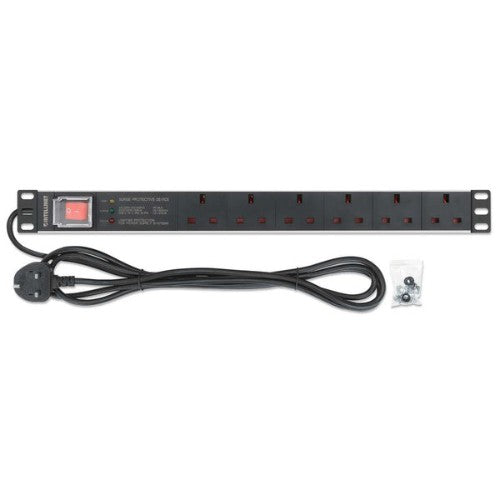

19" 1U PDU 6-way UK, With switch and Surge Protection, Rackmount, Power Distribution Unit, UK 3-pin outlets, 3m power cord, output
Plug your networking, telecom, surveillance, AV or other electronics into this 6-outlet 19"" PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features six British BS1363A outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For greater safety, it features a surge suppression rating of 170 joules and a 6,000 A surge current. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.
Key Features
- 6-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
- 170 joule surge protection and 6,000 A surge current against dangerous power surges, line noise and spikes
- Built-in 3 m power cord with BS1363A plug

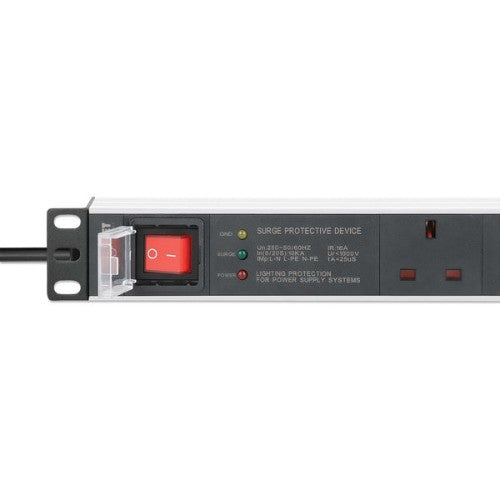

- Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
- Sockets with increased touch protection through contact shutters

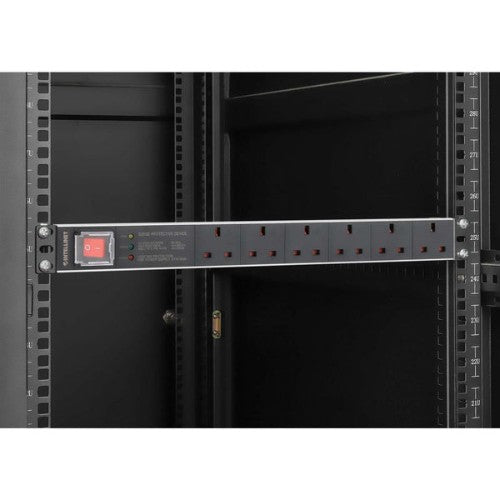

- Horizontal 1U 19"" rack-mount installation
- Right-angled outlet orientation
- Durable aluminum construction
- Grounding point to protect equipment from external electrical surges
- Bracket installation style: frontal
- LED power indicator
- For indoor use only
Description
Rack mount 6-way UK 19 inch PDU surge protector power strip - power up to six devices in your networkPlug your networking, telecom, surveillance, AV or other electronics into this 6-outlet 19"" PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features six British BS1363A outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For greater safety, it features a surge suppression rating of 170 joules and a 6,000 A surge current. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.
Specifications
| Design | |
|---|---|
| On/off switch | Yes |
| Type | Single-phase |
| Mounting | Horizontal |
| Product colour | Black, White |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | BS 1363 |
| Power plug | BS 1363 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Power | |
| Maximum power | 3250 W |
| Nominal input voltage | 220 - 250 V |
| Maximum current | 13 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Compliance certificates | UKCA, CE, RoHS, REACH |
| Weight & dimensions | |
| Weight | 950 g |
| Size (imperial) | 48.3 cm (19") |
| Width | 482.6 mm |
| Depth | 62 mm |
| Height | 45 mm |
| Package width | 515 mm |
| Package depth | 97 mm |
| Package height | 60 mm |
| Package weight | 1.04 kg |
| Packaging data | |
| Package width | 515 mm |
| Package depth | 97 mm |
| Package height | 60 mm |
| Package weight | 1.04 kg |
| Technical details | |
| Compliance certificates | UKCA, CE, RoHS, REACH |
