Description

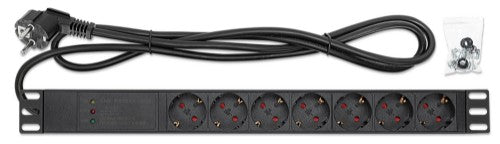

19" 1U Rackmount 7-Output Power Distribution Unit (PDU) / Surge Protector, EU CEE 7/3 Outlets, 500 Joule/19,500 A Surge Protection, Built-in 3 m Power Cord with EU CEE 7/7 Plug, 16 A, Horizontal Mount, Aluminum, Black
Plug your networking, telecom, surveillance, AV or other electronics into this 7-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features seven EU Type E+F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For even more safety, it features a surge suppression rating of 500 joules and 19,500 A surge current.
Key Features
- 7-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
- 500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
- Built-in 3 m power cord with EU CEE 7/7 (Type E+F) plug
- Sockets with increased touch protection through contact shutters
- Horizontal 1U 19" rack-mount installation
- Angled outlet orientation
- Durable aluminum construction
- Grounding point to protect equipment from external electrical surges
- Bracket installation style: frontal
- For indoor use only
Description
Rack mount 7-way 19" surge protector power strip - power up to seven devices in your networkPlug your networking, telecom, surveillance, AV or other electronics into this 7-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features seven EU Type E+F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For even more safety, it features a surge suppression rating of 500 joules and 19,500 A surge current.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| Product colour | Black |
| Certification | CE RoHS REACH IEC 60297 IEC 60884 |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | Type F |
| Features | |
| Cable length | 3 m |
| Certification | CE RoHS REACH IEC 60297 IEC 60884 |
| Surge protection | Yes |
| Ergonomics | |
| Cable length | 3 m |
| Power | |
| Maximum power | 4000 W |
| Nominal input voltage | 220 -250 V |
| Maximum current | 16 A |
| Surge protection | Yes |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CE RoHS REACH IEC 60297 IEC 60884 |
| Compliance certificates | CE, RoHS, REACH |
| Weight & dimensions | |
| Weight | 950 g |
| Width | 483 mm |
| Depth | 45 mm |
| Height | 45 mm |
| Package weight | 1.05 kg |
| Packaging data | |
| Package weight | 1.05 kg |
| Technical details | |
| Compliance certificates | CE, RoHS, REACH |
