Description

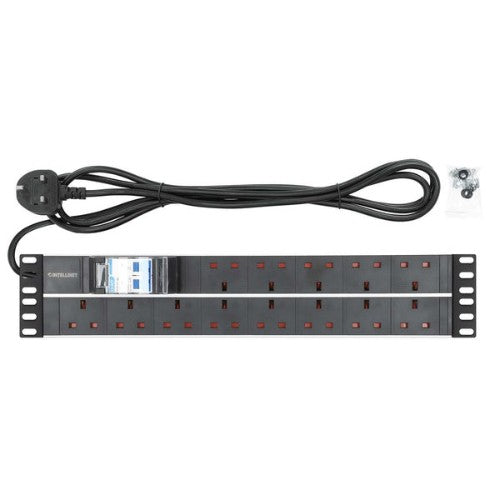

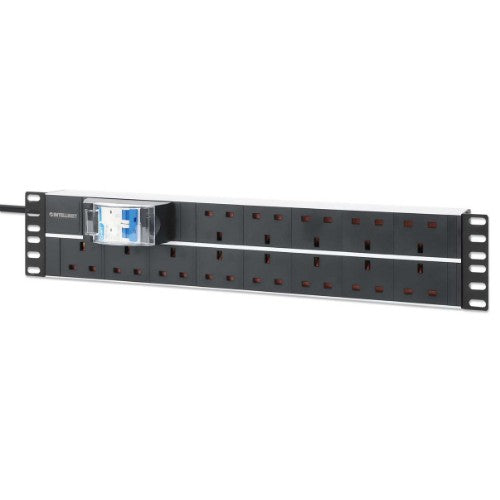

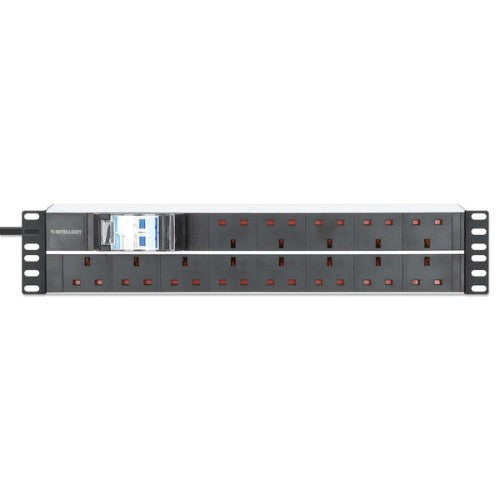

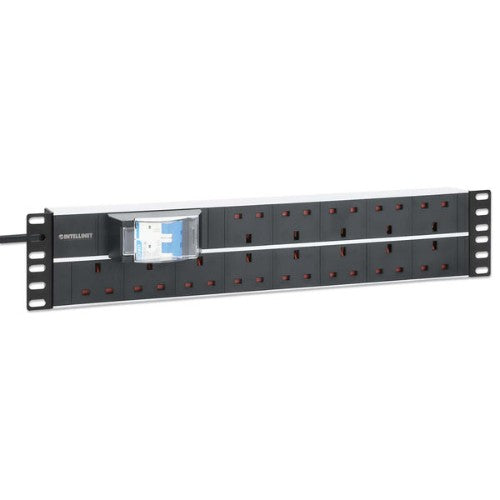

19" 2U PDU 15-way UK, With 2P air breaker, Rackmount, Power Distribution Unit, UK 3-pin outlets, 3m power cord, output
Plug your networking, telecom, surveillance, AV or other electronics into this 13-outlet PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features 13 British BS1363A outlets in a durable black aluminum housing. This PDU mounts in 2U of space in 19-inch racks . As the best choice for protecting equipment against surges or overloads, the built-in air switch uses air to break the circuit and stop the flow of electricity. Air is used as the insulation medium between the open contacts (an air break switch).
Key Features
- 13-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video

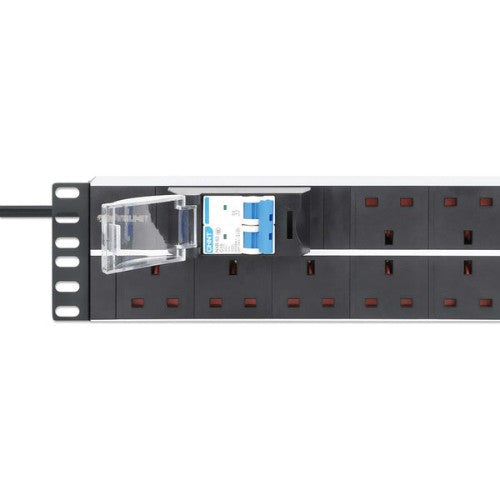

- Air switch protection against surges and overloads
- Built-in 3 m power cord with BS1363A plug
- Sockets with increased touch protection through contact shutters

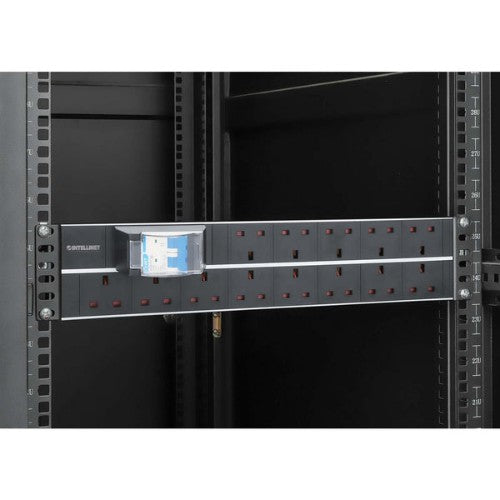

- Vertical rack-mount installation
- Right-angled outlet orientation
- Durable aluminum construction
- Grounding point to protect equipment from external electrical surges
- For indoor use only
Description
Rack mount 13-way UK PDU power strip with air switch protection against surges and overloads - power up to 13 devices in your networkPlug your networking, telecom, surveillance, AV or other electronics into this 13-outlet PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features 13 British BS1363A outlets in a durable black aluminum housing. This PDU mounts in 2U of space in 19-inch racks . As the best choice for protecting equipment against surges or overloads, the built-in air switch uses air to break the circuit and stop the flow of electricity. Air is used as the insulation medium between the open contacts (an air break switch).
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| Mounting | Horizontal |
| Product colour | Black, White |
| Rack capacity | 2U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | BS 1363 |
| Power plug | BS 1363 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Power | |
| Maximum power | 3250 W |
| Nominal input voltage | 220 - 250 V |
| Power protection features | Overload |
| Maximum current | 13 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Compliance certificates | UKCA, CE, RoHS, REACH |
| Weight & dimensions | |
| Weight | 1.59 kg |
| Size (imperial) | 48.3 cm (19") |
| Width | 482.6 mm |
| Depth | 45 mm |
| Height | 88.9 mm |
| Package width | 515 mm |
| Package depth | 97 mm |
| Package height | 100 mm |
| Package weight | 1.73 kg |
| Packaging data | |
| Package width | 515 mm |
| Package depth | 97 mm |
| Package height | 100 mm |
| Package weight | 1.73 kg |
| Technical details | |
| Compliance certificates | UKCA, CE, RoHS, REACH |
