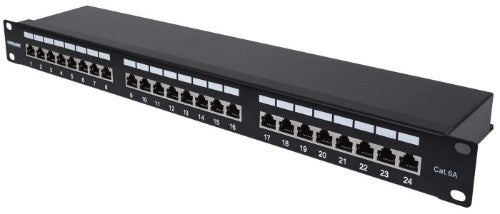

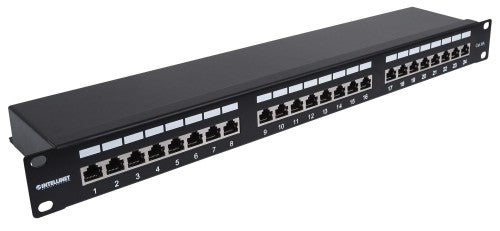

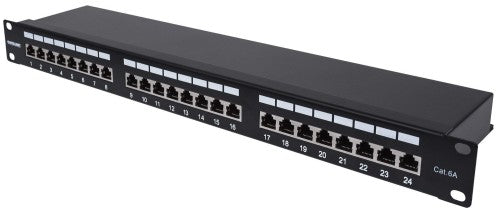

Patch Panel, Cat6a, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch Down Blocks, Black
Key Features
- Solid and reliable terminations for copper cable, featuring a minimum of 3-micron gold-plated jack contacts
- Top-entry punch-down blocks simplify installation
- Compatible with Krone punch-down tools
- Supports 22 to 24 AWG stranded and solid wire
- For use with fully shielded twisted pair (FTP) Cat6a network cable
- Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
- Meets 19" rackmount standards
- Lifetime warranty
Description
The Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organisation. Whether wiring connection points for all eligible pieces of equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel makes the evolution of your network possible. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19";-rack compliant.
Specifications
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Cable types supported |
Cat6a |
| Cable shielding |
F/UTP (FTP) |
| Ports quantity |
24 |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Design |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Certification |
UL, CE |
| Certificates |
|---|
| Certification |
UL, CE |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Width |
482 mm |
| Weight |
1.5 kg |
| Height |
44.3 mm |
| Depth |
98.5 mm |
| Features |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Certification |
UL, CE |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Operating temperature (T-T) |
0 - 70 °C |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Harmonized System (HS) code |
85371098 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
85371098 |
