Description
PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port

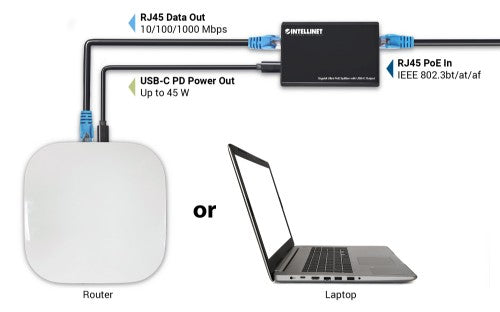

Use your existing PoE network connection to charge a USB-C powered device such as a notebook, Macbook Pro®, Ultrabook™ or tablet with this Gigabit Ultra PoE Splitter from Intellinet Network Solutions. Connected via a single RJ45 network cable to an IEEE 802.3bt-compliant PoE injector or PoE switch, this PoE++ Splitter (4PPoE) separates the Ethernet connection from the power coming through the cable and outputs them into separate ports for USB-C Power Delivery (PD) up to 45 W and Gigabit Ethernet. For maximum safety, it offers overload, overcurrent and overheat protection while being backward compatible with IEEE 802.3at and IEEE 802.3af, so the Ultra PoE Splitter can support any PoE connection.
Key Features
- Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from an IEEE 802.3bt/at/af PoE connection
- Delivers Gigabit Ethernet to an RJ45-equipped device
- PoE power budget of 45 W with 60 W power input through IEEE 802.3bt connection
- PoE power budget of 23 W through IEEE 802.3at connection and 12 W through IEEE 802.3af connection
- Saves time and money by delivering data and power via existing network cables
- Overload, overcurrent and overheat protection
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Fully NDAA-compliant
Description
Power over Ethernet Splitter - Get up to 45 W USB-C power and deliver Gigabit speeds to an RJ45 deviceUse your existing PoE network connection to charge a USB-C powered device such as a notebook, Macbook Pro®, Ultrabook™ or tablet with this Gigabit Ultra PoE Splitter from Intellinet Network Solutions. Connected via a single RJ45 network cable to an IEEE 802.3bt-compliant PoE injector or PoE switch, this PoE++ Splitter (4PPoE) separates the Ethernet connection from the power coming through the cable and outputs them into separate ports for USB-C Power Delivery (PD) up to 45 W and Gigabit Ethernet. For maximum safety, it offers overload, overcurrent and overheat protection while being backward compatible with IEEE 802.3at and IEEE 802.3af, so the Ultra PoE Splitter can support any PoE connection.
Specifications
| Features | |
|---|---|
| LED indicators | Yes |
| Cable standard | Cat5e |
| Housing material | Plastic |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Product colour | Black |
| Cabling technology | 10/100/1000Base-T(X) |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Weight & dimensions | |
| Width | 80 mm |
| Weight | 170 g |
| Height | 24 mm |
| Depth | 54 mm |
| Network | |
| Cable standard | Cat5e |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Performance | |
| Cable standard | Cat5e |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| LED indicators | Yes |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Housing material | Plastic |
| Product colour | Black |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Technical details | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Colour | |
| Product colour | Black |
