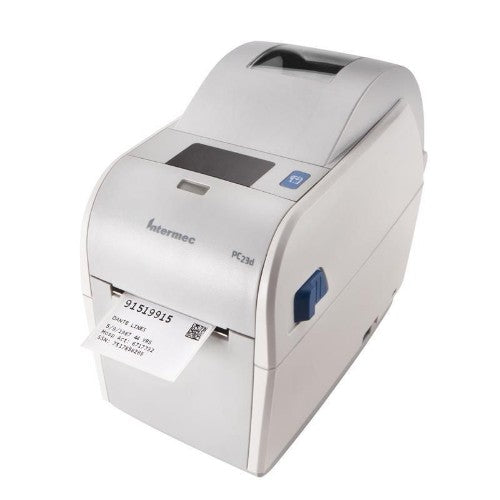

Intermec PC23d label printer Direct thermal 203 x 203 DPI 203.2 mm/sec Wired

203dpi, 8ips, Direct Thermal, LCD, 128MB Flash, Real Time Clock

Description

Product Overview

Available in 4" direct thermal (PC43d) or 4" thermal transfer (PC43t), the Intermec PC43d / PC43t is designed to set a new standard in user friendliness and flexibility. PC43d / PC43t features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43d / PC43t will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43d / PC43t the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

b>Intuitive – Super Easy to Install and Use

- 10-language LCD or Icon-graphics user interface maximizes uptime
- One-handed media loading for trouble-free use
- Half-inch or one-inch ribbon core maximizes time between roll changes (PC43t)
- Fastest throughput in its class at 8 ips for a productivity advantage
- Quick configuration with USB flash drive

Flexible – Fits Your Business Needs Today and Tomorrow

- User-installable connectivity upgrades and accessories for scalability
- Leading command languages for seamless deployment
- Modular IT-friendly design speeds up deployment and support

Smart – Keeps You Informed and Productive

- Remote status updates with Intermec tools minimizes downtime
- Programmable, with ability to directly add keyboard or scale improves efficiency

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Printing
Print speed	203.2 mm/sec
Maximum resolution	203 x 203 DPI
Print technology	Direct thermal
Display
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	No
Memory
Internal memory	128 MB
Flash memory	128 MB
Paper handling
Ribbon width	11.1 cm
Maximum label width	6 cm
Maximum label length	1727 m
Ports & interfaces
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Ethernet LAN	No
USB port	Yes
Performance
Built-in barcodes	1D, 2D, Code 49, EAN13, MaxiCode, PDF417, POSTNET
Ribbon width	11.1 cm
Internal memory	128 MB
Flash memory	128 MB
Certification	CE
Page description languages	IPL, XML, ZPL II
Design
Display	LCD
Product colour	White
Certification	CE
Power
Power consumption	1500 mA
AC adapter output voltage	24 V
AC adapter output current	2.5 A
Technical details
Product colour	White
Built-in barcodes	1D, 2D, Code 49, EAN13, MaxiCode, PDF417, POSTNET
Ribbon width	11.1 cm
Maximum label width	6 cm
Maximum label length	1727 m
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Certificates
Certification	CE
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	125 mm
Depth	215 mm
Height	177 mm
Weight	1.45 kg
Logistics data
Harmonized System (HS) code	84433210
