Description

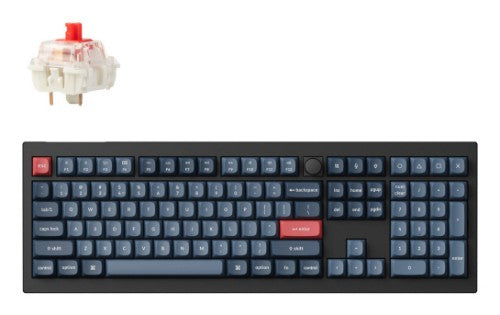

V6 Max QMK/VIA Wireless Custom Mechanical Keyboard, Gateron Jupite Red
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.
Dual Receivers
For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.
An Epic Core Inside The Keyboard
A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Gasket Mount Design
By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V6 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
Key Features
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the PC plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Gateron Jupiter switches
Description
The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.
Dual Receivers
For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.
An Epic Core Inside The Keyboard
A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Gasket Mount Design
By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V6 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
Specifications
| Keyboard | |
|---|---|
| Keyboard key switch | Mechanical |
| Key travel distance | 3.4 mm |
| Rollover | N-key rollover |
| On/off switch | Yes |
| Polling rate | 90,1000 Hz |
| Bluetooth version | 5.1 |
| Frequency band | 2.4 GHz |
| Recommended usage | Universal |
| Keyboard style | Straight |
| Keyboard form factor | Full-size (100%) |
| Keyboard layout | QWERTY |
| Built-in memory capacity | 256 KB |
| Built-in memory | Yes |
| Programmable hot keys | Yes |
| Windows keys | Yes |
| Pointing device | No |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Connectivity technology | Wired & Wireless |
| Adjustable keyboard height | Yes |
| Actuation force | 59 g |
| Device interface | USB + RF Wireless + Bluetooth |
| Multimedia keys | Yes |
| Keyboard key switch technology | Gateron Jupiter Red |
| Keyboard key profile | High-profile |
| Keyboard keys operating life | 80 million characters |
| Keycaps material | Polybutylene terephthalate (PBT) |
| Keycaps | Double shot |
| Ports & interfaces | |
| Bluetooth version | 5.1 |
| Frequency band | 2.4 GHz |
| Design | |
| Adjustable backlight | Yes |
| Backlight type | RGB LED |
| Material | Plastic |
| Product colour | Black, Grey |
| Keyboard style | Straight |
| Backlight | Yes |
| Backlight colour | Red/Green/Blue |
| Adjustable keyboard height | Yes |
| Technical details | |
| Material | Plastic |
| Product colour | Black, Grey |
| Backlight | Yes |
| Backlight colour | Red/Green/Blue |
| Built-in memory capacity | 256 KB |
| Built-in memory | Yes |
| Windows keys | Yes |
| Rechargeable | Yes |
| Numeric keypad | Yes |
| Number of products included | 1 pc(s) |
| Connectivity technology | Wired & Wireless |
| Multimedia keys | Yes |
| Ergonomics | |
| Detachable cable | Yes |
| Rechargeable | Yes |
| Features | |
| Detachable cable | Yes |
| USB connector type | USB Type-C |
| Hot-swap | Yes |
| Receiver | |
| Wireless receiver interface | USB Type-A/USB Type-C |
| Power | |
| Power source type | Battery, USB |
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 225 h |
| Keyboard battery type | Built-in battery |
| Rechargeable | Yes |
| Battery capacity | 4000 mAh |
| Battery recharge time | 5 h |
| USB Type-C charging port | Yes |
| Mouse | |
| On/off switch | Yes |
| Mouse included | No |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
| Keyboard weight | 1.11 kg |
| Keyboard dimensions (WxDxH) | 447.9 x 149 x 32.5 mm |
| Packaging data | |
| Wireless receiver interface | USB Type-A/USB Type-C |
| Receiver included | Yes |
| Number of products included | 1 pc(s) |
| Packaging content | |
| Wireless receiver interface | USB Type-A/USB Type-C |
| Receiver included | Yes |
| Number of products included | 1 pc(s) |
| AC adapter included | No |
| Other features | |
| Pointing device | No |
| Connectivity technology | Wired & Wireless |
| AC adapter included | No |
