Kodak S2070 ADF scanner 600 x 600 DPI A4 Black, White

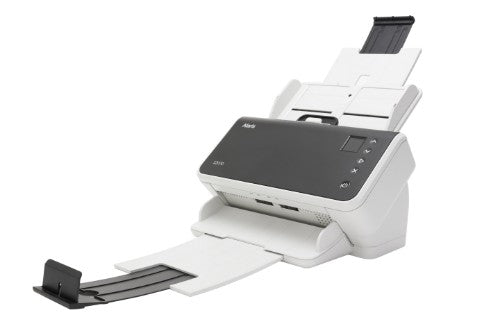

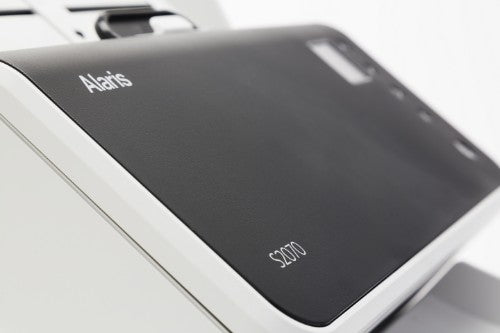

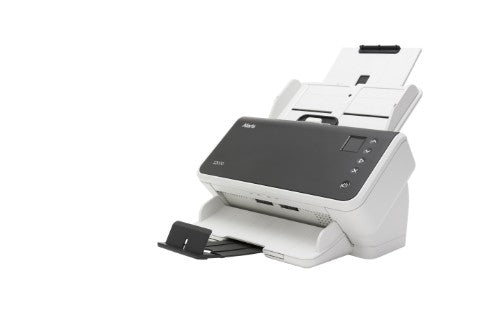

KODAK S2070 Scanner

Reasons To Buy

Adaptable

The Alaris S2000 scanners are designed to fit seamlessly into your business environment and adapt as your needs change.

Diverse document handling

Handles up to 80 sheets (80g/m2) of paper and also small documents such as ID cards, embossed hard cards, business cards, and insurance cards.

Easy to use

The control panel screen is easy to read, with custom activity names and colour icons that make scanning tasks quick and easy to select.

Great paper handling abilities

The scanner comes with Active Feed technology, which takes the worry out of document prep for small batches, as well as Controlled Output Stacking keeps documents neatly organised at output so you can focus on your customer

Media and exceptional processing

The Alaris Passport Flatbed Accessory and the Alaris Integrated A4/Legal Size Flatbed Accessory plus A3 size Flatbed are available for speciality media and exception processing with the S2070

Description

The KODAK S2070 Scanner is a mid-to-high volume solution built to let you capture information anywhere, with superior image quality and data accuracy. When you need to get information captured quickly, the S2070’s paper handling, out-of-the-box workflow profiles, and software will put you on the road to digital transformation.

Embedded Image Processing

Save money at all steps in the scanning process, with innovation that takes out overhead costs. Embedded Image Processing delivers crisp, high-quality images at full speed without depending on a super-powered PC. Intelligent features help reduce manual pre- and post-scan tasks.

Intuitive User Display

Start up faster and stay productive with ease-of-use features. Install preconfigured settings in seconds using the award-winning Easy Setup feature. The intuitive color displays make scanning quick and easy. Save up to 20 job setups and destinations with one-touch scanning.

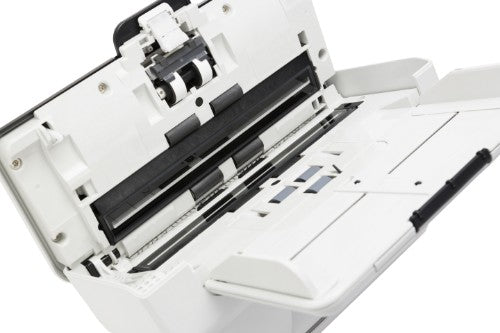

Active Feed Technology

Keep working without worrying about jams, thanks to a paper path built for exceptional reliability. Active Feed automatically jogs pages to avoid misfeeds. Maintain maximum uptime with SurePath Paper Handling. Controlled Output stacking neatly places pages in the output tray.

Optical Character Recognition

Get the right information the first time, with OCR read rates that are 10% more accurate than competitive devices. Perfect Page technology delivers superior image quality with 30+ enhancements automatically for more accurate image extraction.

Advanced Capture Software

Deliver information exactly where it needs to go, in the right format. Your documents can go anywhere you need: local or network folders, FTP, cloud destinations like SharePoint, or other ECM systems. Advanced capture software and our partners can help you extract data from documents and integrate it directly into business processes.

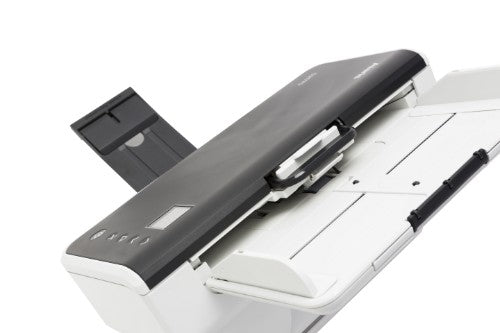

Ready for passports or small delicate documents

The KODAK S2000 Series is designed to ‘dock’ on top of the Passport Flatbed Accessory, offering a quick and easy solution for scanning passports, ID cards and other small, fragile documents. You don’t need another power cord or USB port on your host PC. Thanks to seamless TWAIN and ISIS-driver integration there is no need to use multiple scanner drivers.

Specifications

Scanning
Output greyscale depth	8 bit
Selectable background colour	No
Black/white scanning colour modes	Grayscale
Maximum scan size	216 x 3000 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Film scanning	No
Greyscale levels	256
ADF scan speed (b/w, A4)	70 ppm
ADF scan speed (colour, A4)	70 ppm
Duplex ADF scan speed (b/w, A4)	140 ipm
Duplex ADF scan speed (colour, A4)	140 ipm
ADF scan speed (greyscale, A4)	70 ppm
Sensor type	Dual CIS
Light source	RGB LED
Scan file formats	BMP, CSV, DOC, JPG, PDF, PNG, RTF, TIFF, TXT, XLS
Daily duty cycle (max)	7000 pages
Scan to	Cloud, E-mail, E-mail Server, File, Image, OCR, PC, TWAIN, WIA
Design
Built-in display	Yes
Touchscreen	No
Scanner type	ADF scanner
Display diagonal	3.81 cm (1.5")
Display	LCD
Product colour	Black, White
Performance
Barcode reader	Yes
Button functions	Cancel, down, Off, On, Scan, Up
Sensor type	Dual CIS
Light source	RGB LED
Scan file formats	BMP, CSV, DOC, JPG, PDF, PNG, RTF, TIFF, TXT, XLS
Daily duty cycle (max)	7000 pages
Scan to	Cloud, E-mail, E-mail Server, File, Image, OCR, PC, TWAIN, WIA
Scan drivers	ISIS, TWAIN, WIA
Processor frequency	1500 MHz
Built-in processor	Yes
Input capacity
Standard input capacity	80 sheets
Auto document feeder (ADF) input capacity	80 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	3 m
Maximum ISO A-series paper size	A4
Scanning media types supported	Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum scan area (ADF)	216 x 356 mm
Minimum scan area (ADF)	52 x 52 mm
Auto Document Feeder (ADF) media weight	27 - 433 g/m²
Multi feed detection	Yes
Legal	Yes
ISO A-series sizes (A0...A9)	A4

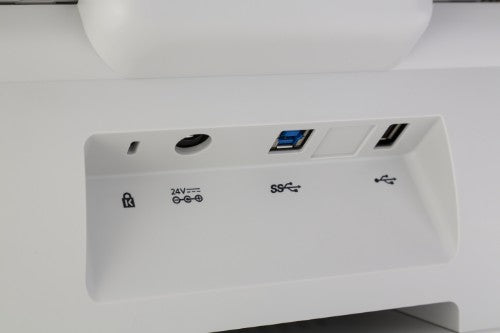

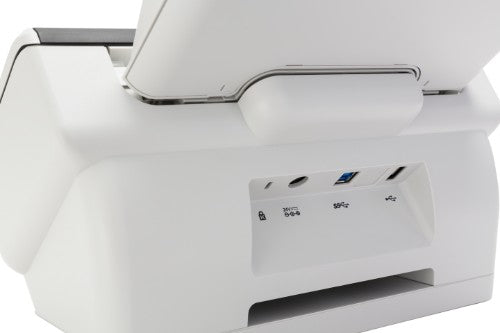

Ports & interfaces
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Bundled software	WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Alaris Capture Pro Limited, Smart Touch, LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)
Scan drivers	ISIS, TWAIN, WIA
Drivers included	Yes
Power
Power consumption (typical)	36 W
Power consumption (standby)	3 W
Power consumption (off)	0.5 W
Input voltage	100-240 V
Power supply type	AC
Power supply	36 W
Power consumption (PowerSave)	3 W
AC input frequency	50 - 60 Hz
Technical details
Maximum scan width	21.6 cm
Black/white scanning colour modes	Grayscale
Button functions	Cancel, down, Off, On, Scan, Up
Scanner type	ADF scanner
Product colour	Black, White
Downloadable software	Capture Pro Limited Edition, Smart Touch
Scan technology	Dual CIS
PC connection	USB 3.2 Gen 1 (3.1 Gen 1)
Linear (1D) barcodes supported	Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, PDF417, U.P.C.
Relative humidity	15 - 80%
Maximum paper size	216 x 3000 mm
Power	36 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84716070
Processor
Processor frequency	1500 MHz
Built-in processor	Yes
Display
Touchscreen	No
Display diagonal	3.81 cm (1.5")
Display	LCD
Media formats
Legal	Yes
ISO A-series sizes (A0...A9)	A4
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Minimum RAM	4000 MB
Minimum processor	INTEL CORE i3 - 4150 processor
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Operating temperature (T-T)	50 - 95 °F
Certificates
Certification	EPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark), CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark), Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B), China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark), EN55022:2010 ITE Emissions (Class B), EN55024:2010 ITE Immunity (CE mark), EN60950-1:2006 +A1,+A11,+A12 (TUV GS mark), IEC60950-1:2005 +A1, Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark), UL 60950-1:2007 R12.11 (TUV US mark), CFR 47 Part 15 (FCC Class B), Argentina S mark
Weight & dimensions
Width	312 mm
Depth	204 mm
Height	182.5 mm
Weight	3.3 kg
Packaging content
Cables included	AC, USB
Stacker	Yes
ADF paper chute	Yes
Bundled software	WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Alaris Capture Pro Limited, Smart Touch, LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)
Drivers included	Yes
Other features
Scanner type	ADF scanner
Downloadable software	Capture Pro Limited Edition, Smart Touch
Logistics data
Harmonized System (HS) code	84716070
