Description
Pair 1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter
It offers SC, FC, or ST connectors for fiber optic cables and an RJ45 connector for twisted pair UTP cable connections.
The device supports extensions up to 20km over fiber.
Key Features
- 1x RJ45 port and 1x fiber SC port
- The Distance support to 20KM
- In conformity with safety code of FCC, CE and RoHS
- Support flow control
- Auto Negotiation
- Auto MDI/MDI-X
- Supports 10/100/1000M full/half duplex, easy upgrades
Description

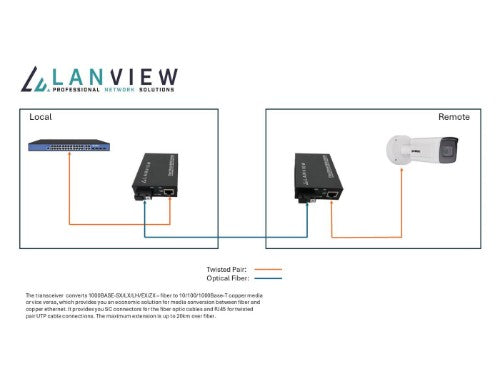

The transceiver facilitates the conversion from 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa, offering cost-effective solutions for media conversion between fiber and copper Ethernet.It offers SC, FC, or ST connectors for fiber optic cables and an RJ45 connector for twisted pair UTP cable connections.
The device supports extensions up to 20km over fiber.
Specifications
| Network | |
|---|---|
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5 |
| Copper ethernet cabling technology | 1000BASE-LX |
| Networking standards | IEEE 802.3u |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Fiber optic connector | SC |
| Performance | |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Features | |
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| Plug and Play | Yes |
| LED indicators | Power |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 5 V |
| Input current | 1 A |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 78 mm |
| Weight | 640 g |
| Height | 23 mm |
| Package depth | 100 mm |
| Package width | 150 mm |
| Package height | 50 mm |
| Package weight | 740 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| User guide | Yes |
| Packaging data | |
| Package depth | 100 mm |
| Package width | 150 mm |
| Package height | 50 mm |
| Package weight | 740 g |
| Technical details | |
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Transmission distance (max) | 20 km |
| Plug and Play | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Power |
| Design | |
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| LED indicators | Power |
| Certification | CE, FCC, Rohs |
| Management features | |
| Plug and Play | Yes |
| Certificates | |
| Certification | CE, FCC, Rohs |
| Compliance certificates | RoHS |
| Other features | |
| Transmission distance (max) | 20 km |
| Power requirements | 5V 1A |
| Connector(s) | RJ45, SC |
