Description

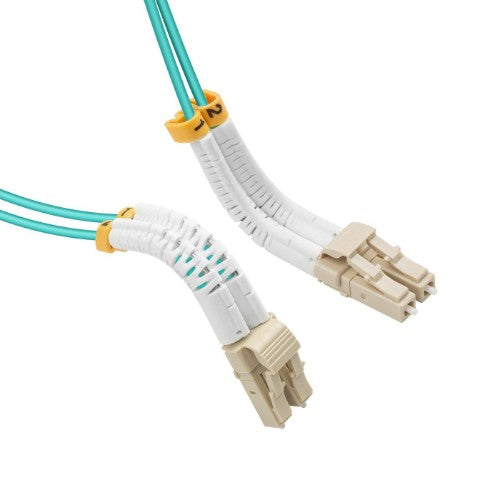

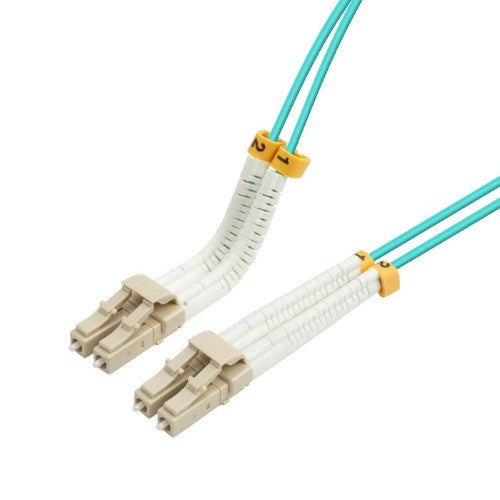

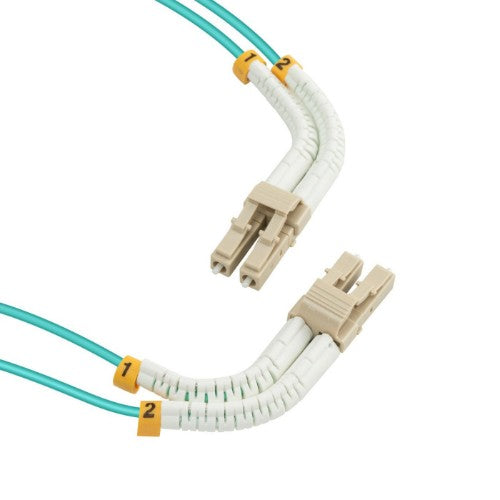

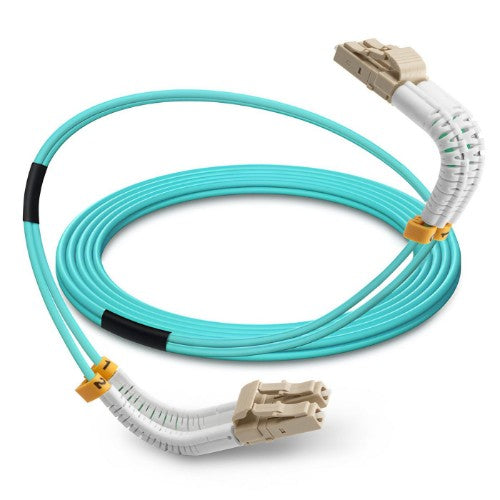

Bendable LC-LC Multimode fibre cable duplex 20m OM3 LSZH
The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Aqua
- Bending radius: 30 mm
- LC/UPC Connector
- Cable Diameter 2.0mm
Description
The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.
Specifications
| Features | |
|---|---|
| Compressive strength | 10 |
| Fibre optic type | OM3 |
| Return loss | 35 dB |
| Connector gender | Male/Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 20 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Wavelengths supported | 850 nm |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Bending radius | 3 cm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable diameter | 2 mm |
| Weight | 350 g |
| Cable length | 20 m |
| Package width | 200 mm |
| Package depth | 50 mm |
| Package height | 250 mm |
| Package weight | 350 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 50 mm |
| Package height | 250 mm |
| Package weight | 350 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 20 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Other features | |
| Core / cladding diameter | 50/125 µm |
