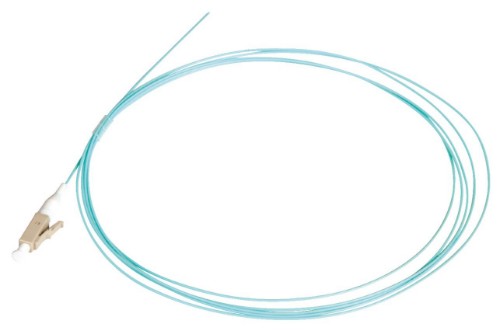

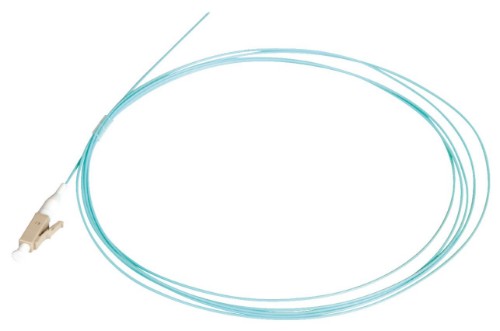

LC/UPC Pigtail Multimode 2m OM3 50/125 PVC EASY STRIP
Key Features
- Designed for Data Centers, Industry and Computer Centers
- Length: 2 meter
Description
Used for splicing fibre optical cables. Comes with ceramic zirconia ferrule. Used in telecommunication and data communication installations in high speed network.
Specifications
| Features |
|---|
| Fibre optic type |
OM3 |
| Return loss |
35 dB |
| Jacket material |
Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
No |
| Cable length |
2 m |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Product colour |
Aqua colour |
| Connector 1 gender |
Male |
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Certification |
ISO 9001, UL, GR-236-Core, IEC 61755, IEC61300 |
| Certificates |
|---|
| Certification |
ISO 9001, UL, GR-236-Core, IEC 61755, IEC61300 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Cable diameter |
0.9 mm |
| Weight |
12 g |
| Cable length |
2 m |
| Package weight |
12 g |
| Packaging data |
|---|
| Package weight |
12 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
No |
| Cable length |
2 m |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Connector(s) |
LC |
| Insertion loss |
0.3 dB |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Connector(s) |
LC |
