Description

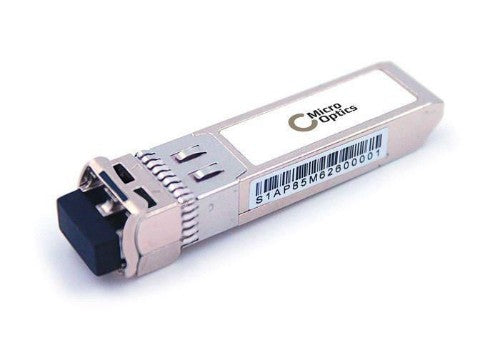

SFP+ 10 Gbps, MMF, 300 m, LC, DDMI support, Compatible with Cisco SFP-10G-SR
Key Features
- **100% Cisco Compatible**
Description
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Cabling technology | 1000/10000 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | Cisco 10GBASE-SR |
| Brand compatibility | Cisco |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | Cisco 10GBASE-SR |
| Brand compatibility | Cisco |
| Form factor | SFP+ |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Cabling technology | 1000/10000 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 10 g |
| Package depth | 67 mm |
| Package width | 106 mm |
| Package height | 24 mm |
| Package weight | 32 g |
| Technical details | |
| Package width | 106 mm |
| Package height | 24 mm |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Compatible products | Cisco 10GBASE-SR |
| Cabling technology | 1000/10000 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package type | Window box |
| Package depth | 67 mm |
| Package width | 106 mm |
| Package height | 24 mm |
| Package weight | 32 g |
| Packaging content | |
| Package type | Window box |
