Description

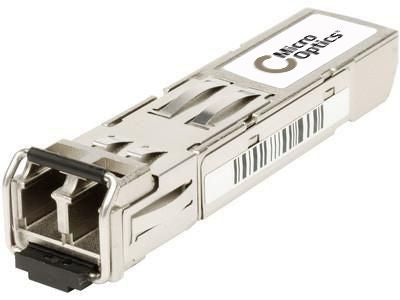

SFP 1.25 Gbps, MMF, 550 m, LC, DDMI, Compatible with Zyxel SFP-SX-D
Key Features
- **100% Zyxel Compatible**
Description
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Tx power (min) | -9 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | LC |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Maximum transfer distance (Multi-mode) | 550 m |
| SFP transceiver standard | SX |
| Fiber ethernet cabling technology | 1000BASE |
| Easy to install | Yes |
| Plug and Play | Yes |
| Compatible products | Zyxel SFP-SX-D |
| Brand compatibility | Zyxel |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Compatible products | Zyxel SFP-SX-D |
| Brand compatibility | Zyxel |
| Form factor | SFP |
| Certification | MSA |
| RX sensitivity | -18 dB |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | -45 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | LC |
| Ethernet interface type | Gigabit Ethernet |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 56 mm |
| Height | 8.5 mm |
| Weight | 40 g |
| Package depth | 100 mm |
| Package width | 60 mm |
| Package height | 30 mm |
| Package weight | 50 g |
| Technical details | |
| Package width | 60 mm |
| Package height | 30 mm |
| Plug and Play | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Compatible products | Zyxel SFP-SX-D |
| Cabling technology | 10/100/1000 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package type | Window box |
| Package depth | 100 mm |
| Package width | 60 mm |
| Package height | 30 mm |
| Package weight | 50 g |
| Packaging content | |
| Package type | Window box |
| Other features | |
| RX sensitivity | -18 dB |
