Description

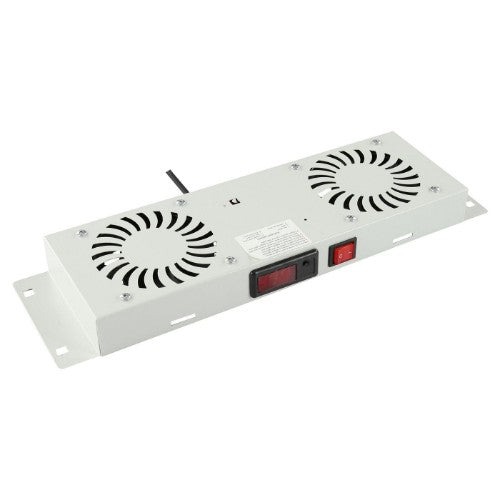

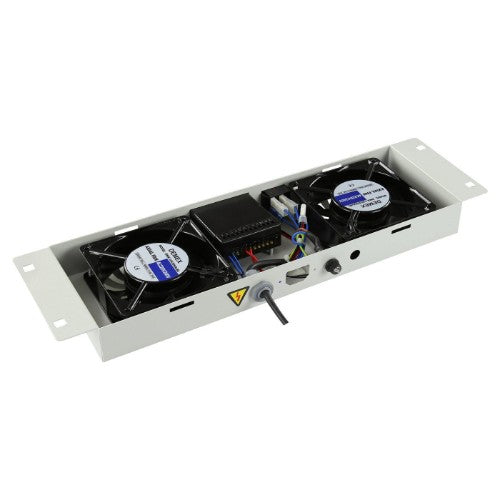

by Logon 2 FANS, DIGITAL THERMOSTAT CONTROLLED FAN MODULE WHITE
2 Fan Module roof mounted module with digital thermostat
Specifications
2 Fans
Digital thermostat
Air Flow: 280m³/hour
Universal
Roof mounted
RAL7035
Key Features
- 42,5db - 44,5db noise level
Description
Model: Logon RAF205BL2 Fan Module roof mounted module with digital thermostat
Specifications
2 Fans
Digital thermostat
Air Flow: 280m³/hour
Universal
Roof mounted
RAL7035
Specifications
| Features | |
|---|---|
| On/off switch | Yes |
| Easy mounting | Yes |
| Preassembled | Yes |
| Number of fans | 2 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 280 m³/h |
| Type | Fan panel |
| Rack capacity | 1U |
| Product colour | White |
| Mounting hole shape | Square |
| Built-in fan | Yes |
| Noise level | 50 dB |
| Cooling | |
| Number of fans | 2 fan(s) |
| Airflow | 280 m³/h |
| Built-in fan | Yes |
| Power | |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Package weight | 103 g |
| Width | 486 mm |
| Weight | 103 g |
| Height | 44 mm |
| Depth | 133 mm |
| Packaging data | |
| Package weight | 103 g |
| Technical details | |
| Type | Fan panel |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
| Colour | |
| Product colour | White |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
