Description
by Logon 4 FANS, DIGITAL THERMOSTAT CONTROLLED FAN MODULE BLACK

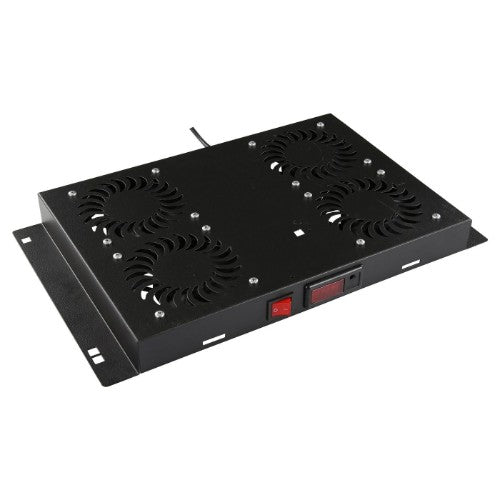

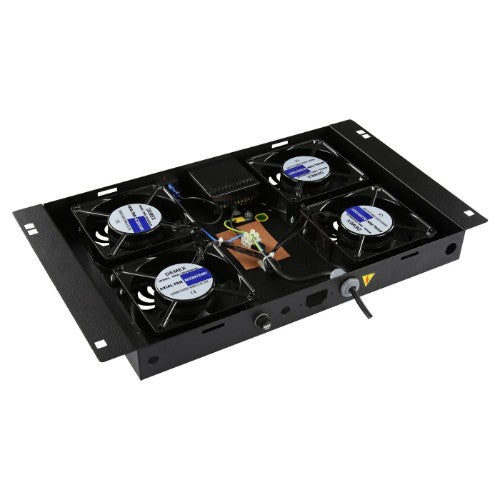

4 Fan Module roof mounted module with digital thermostat
Specifications
2 Fans
Digital thermostat
Air Flow: 560m³/hour
Universal
Roof mounted
RAL9005
Key Features
- Each Fan have a 2,22m3/min to 2,7m3/min suction
- 43db - 47db noise level
Description
MODEL: LOGON RAF210BL4 Fan Module roof mounted module with digital thermostat
Specifications
2 Fans
Digital thermostat
Air Flow: 560m³/hour
Universal
Roof mounted
RAL9005
Specifications
| Features | |
|---|---|
| Compatible rack width | 19" |
| Number of fans | 4 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 560 m³/h |
| Rack capacity | 1U |
| Product colour | Black |
| Mounting hole shape | Square |
| Harmonized System (HS) code | 8473302000 |
| Cooling | |
| Number of fans | 4 fan(s) |
| Airflow | 560 m³/h |
| Power | |
| AC input frequency | 50 Hz |
| Power plug type | Type F |
| Weight & dimensions | |
| Package weight | 3.51 kg |
| Width | 487 mm |
| Weight | 3.5 kg |
| Height | 44 mm |
| Depth | 285 mm |
| Packaging data | |
| Package weight | 3.51 kg |
| Packaging content | |
| Included power plug types | EU |
| Technical details | |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 487 x 285 x 44 mm |
| Technical features | Digital Thermostat |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 8473302000 |
| Other features | |
| Dimensions (WxDxH) | 487 x 285 x 44 mm |
| Technical features | Digital Thermostat |
