Description

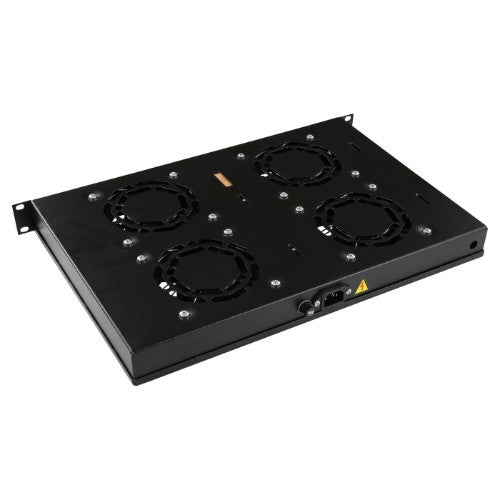

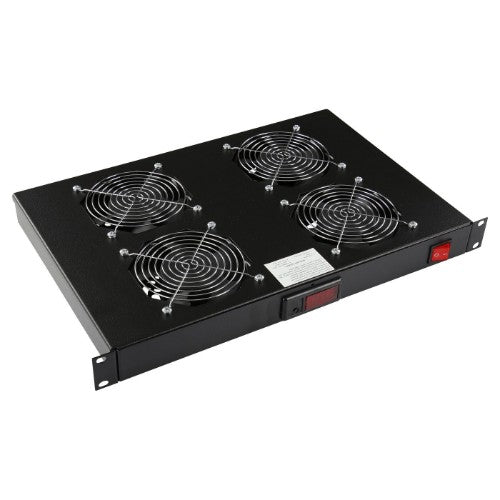

by Logon 4 FANS, DIGITAL THERMOSTAT RACK MOUNT FAN MODULE 1U
Key Features
- 43db - 47db noise level
- Each Fan have a 2,22m3/min to 2,7m3/min suction
Description
Lanview´s 1U Horizontal cooling Unit for Superior Cooling for Network/Server Racks with an Air Flow: 560m³/hourSpecifications
| Features | |
|---|---|
| On/off switch | Yes |
| Easy mounting | Yes |
| Compatible rack width | 19" |
| Preassembled | Yes |
| Number of fans | 4 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 560 m³/h |
| Type | Fan panel |
| Rack capacity | 1U |
| Compatibility | 19´´ mounting rail |
| Product colour | Black |
| Mounting hole shape | Oval |
| Housing material | Steel |
| Thermostat | Yes |
| Number of attachment points | 2 |
| Cooling | |
| Number of fans | 4 fan(s) |
| Airflow | 560 m³/h |
| Power | |
| AC input frequency | 50 Hz |
| Power plug type | Type F |
| Weight & dimensions | |
| Package weight | 5.31 kg |
| Width | 482 mm |
| Weight | 5.3 kg |
| Height | 44 mm |
| Depth | 300 mm |
| Packaging data | |
| Package weight | 5.31 kg |
| Packaging content | |
| Screws included | Yes |
| Included power plug types | EU |
| Cage nuts included | Yes |
| Technical details | |
| Type | Fan panel |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 482 x 300 x 44 mm |
| Compatibility | 19´´ mounting rail |
| Technical features | Digital Thermostat |
| Colour | |
| Product colour | Black |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 482 x 300 x 44 mm |
| Technical features | Digital Thermostat |
