Description
by Logon D=670mm FIXED SHELF ADJUSTABLE SIDE ARM BLACK

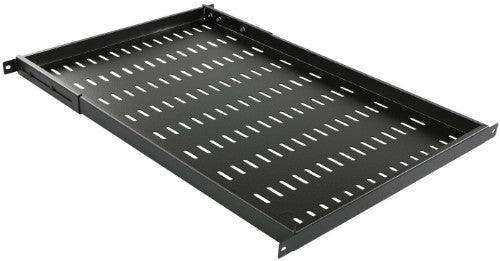

19" Adjustable Shelf for 1U cabinets D: 670mm
Features
Adjustable cabinet shelves are adaptable to LOGON cabinets, with 4 connection points and bearing ventilation holes.
By means of 2 depth adjustable side brackets at the back, they may be installed at various depths
Specifications
Dimensions(mm): W:485 x D: 670 x H: 25
Maximum static load(kg): 50
Color: RAL 9005
Description
Model: Logon Professional RAS805BL19" Adjustable Shelf for 1U cabinets D: 670mm
Features
Adjustable cabinet shelves are adaptable to LOGON cabinets, with 4 connection points and bearing ventilation holes.
By means of 2 depth adjustable side brackets at the back, they may be installed at various depths
Specifications
Dimensions(mm): W:485 x D: 670 x H: 25
Maximum static load(kg): 50
Color: RAL 9005
Specifications
| Features | |
|---|---|
| Easy mounting | Yes |
| Compatible rack width | 19" |
| Preassembled | Yes |
| Type | Adjustable shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Mounting hole shape | Oval |
| Perforated | Yes |
| Number of attachment points | 4 |
| Weight & dimensions | |
| Package weight | 1.58 kg |
| Width | 483 mm |
| Weight | 1.57 kg |
| Height | 44 mm |
| Depth | 525 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package weight | 1.58 kg |
| Packaging content | |
| Screws included | Yes |
| Cage nuts included | Yes |
| Technical details | |
| Type | Adjustable shelf |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 485 x 670 x 25 mm |
| Static load | 50 Kg |
| Colour | |
| Product colour | Black |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 485 x 670 x 25 mm |
| Static load | 50 Kg |
