Description
by Logon 4 pcs. EARTHING CABLE FOR 10 EARTHING POINT SET
Product dimensions(mm): W: 482 x D: 35 x H: 44

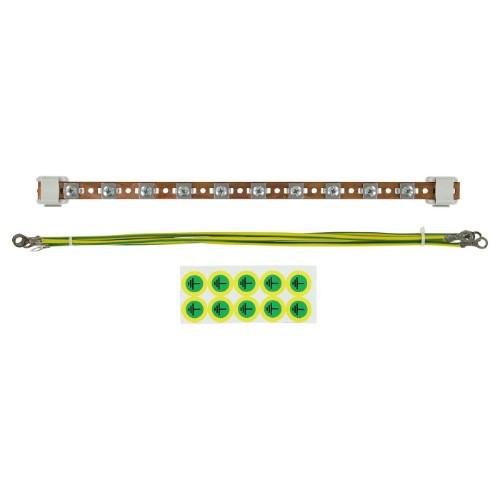

It is a grounding set suitable for all 19" cabinets bearing 10 grounding points thereon with a 400mm length copper busbar and 4 yellow-green grounding wires of 400mm length and 4mm diameter, introduced with a 1U metal installation base and attached to the panel.
Description
19" 10 earthing pointProduct dimensions(mm): W: 482 x D: 35 x H: 44
It is a grounding set suitable for all 19" cabinets bearing 10 grounding points thereon with a 400mm length copper busbar and 4 yellow-green grounding wires of 400mm length and 4mm diameter, introduced with a 1U metal installation base and attached to the panel.
Specifications
| Features | |
|---|---|
| Easy mounting | Yes |
| Preassembled | Yes |
| International Protection (IP) code | IP20 |
| Type | Earthing kit |
| Rack capacity | 1U |
| Product colour | Steel |
| Number of attachment points | 2 |
| Weight & dimensions | |
| Package weight | 460 g |
| Width | 482 mm |
| Weight | 450 g |
| Height | 44 mm |
| Depth | 35 mm |
| Packaging data | |
| Package weight | 460 g |
| Technical details | |
| Type | Earthing kit |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 482 x 35 x 44 mm |
| Colour | |
| Product colour | Steel |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 482 x 35 x 44 mm |
