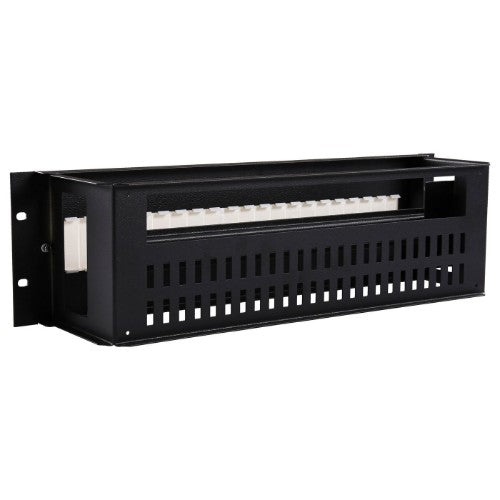

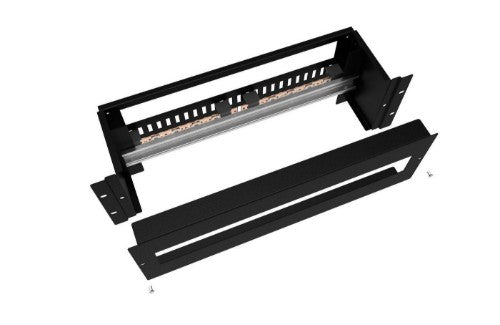

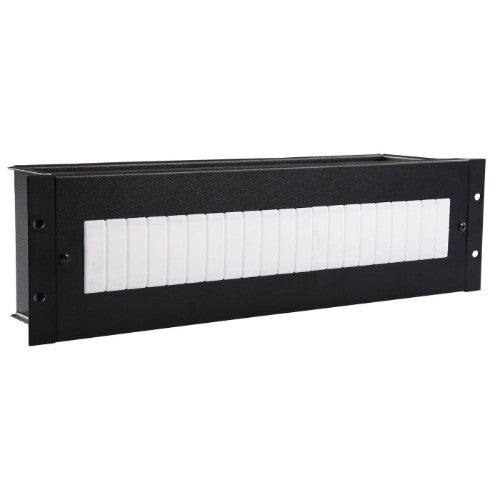

Lanview RAX630BL rack accessory DIN rail panel

by Logon 3U 19" ELECTRICAL/DIN RAIL MODULE - BLACK

Description

3U 19" Electrical Distribution Module, with busbar

Electrical distribution modules are metal accessories, suitable for all 19" cabinets, designed for electrical distribution inside the cabinet.
Delivered with integrated DIN ray and breakable BLANK piece.
They have a 380mm entry opening and are suitable for all circuit breaker and power plug module within this width.

Specifications
Integrated DIN rail
Breakable platic blank piece
380mm entry opening
Suitable for all cricuit breaker and power plug modules within this width
Color: RAL9005
Product dimensions (mm): W: 482 x D: 123 x H: 133
Package dimensions (mm): W: 500 x D: 150 x H: 155
Product Net weight (kg): 2,6
Product Gross weight (kg): 2,9

Specifications

Features
Easy mounting	Yes
Compatible rack width	19"
Preassembled	Yes
Type	DIN rail panel
Rack capacity	3U
Product colour	Black
Mounting hole shape	Round
Number of attachment points	2
Weight & dimensions
Package weight	2.42 kg
Width	482 mm
Weight	2.41 kg
Height	133 mm
Depth	123 mm
Packaging data
Package weight	2.42 kg
Packaging content
Screws included	Yes
Cage nuts included	Yes
Technical details
Type	DIN rail panel
Rack mounting	Yes
Rack capacity	3U
Dimensions (WxDxH)	482 x 123 x 133 mm
Colour
Product colour	Black
Other features
Rack mounting	Yes
Dimensions (WxDxH)	482 x 123 x 133 mm
