Description

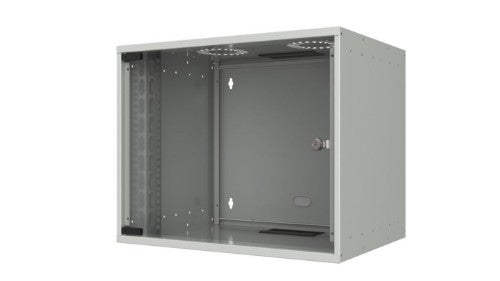

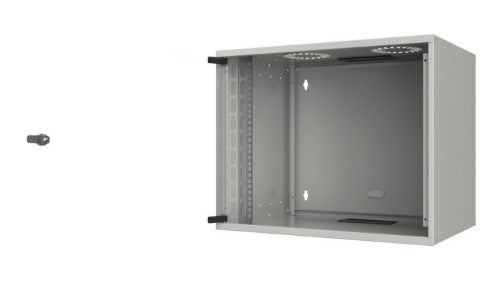

by Logon 19" Rack Cabinet 9U 53 x 40 SOHO Wallmount Unmounted
They are simple and small-scale wall mount network installation solutions with low cost and robust structure. It adapts to the places where it is used with its aesthetic and decorative appearance. They have 19” and 10” width options.
Aesthetic Look
With its aesthetic and decorative appearance, it easily adapts to the places where it is used. Windshield cover; It is 4mm, smoked, antistatic, grinding, tempered and has a high break resistance, full length and locked structure.
The opening direction of the cylindrical O-lock front cover can be changed easily. The glass door module has a special u-type screw hinge system.
Variety
SOHO Cabinets have two types of width as 19” and 10”, and 2 types of depth as 400mm and 300mm.
Purpose of Usage
It is used in installation of small systems, intermediate distribution terminal, network floor distributions, wall type network installation applications.
Key Features
- Glass Door
- Wallmount
- RAL7035
Description
Product Dimensions: 535 x 400 x 440mmThey are simple and small-scale wall mount network installation solutions with low cost and robust structure. It adapts to the places where it is used with its aesthetic and decorative appearance. They have 19” and 10” width options.
Aesthetic Look
With its aesthetic and decorative appearance, it easily adapts to the places where it is used. Windshield cover; It is 4mm, smoked, antistatic, grinding, tempered and has a high break resistance, full length and locked structure.
The opening direction of the cylindrical O-lock front cover can be changed easily. The glass door module has a special u-type screw hinge system.
Variety
SOHO Cabinets have two types of width as 19” and 10”, and 2 types of depth as 400mm and 300mm.
Purpose of Usage
It is used in installation of small systems, intermediate distribution terminal, network floor distributions, wall type network installation applications.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 9U |
| International Protection (IP) code | IP40 |
| Front door construction | Glass/Steel |
| Mounting hole shape | Round |
| Type | Wall mounted rack |
| Maximum weight capacity | 80 kg |
| Material | Glass |
| Cooling type | Passive |
| Product colour | White |
| Weight & dimensions | |
| Package depth | 550 mm |
| Package width | 430 mm |
| Package height | 450 mm |
| Package weight | 11.2 kg |
| Width | 535 mm |
| Depth | 400 mm |
| Height | 440 mm |
| Weight | 11.2 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 80 kg |
| Packaging data | |
| Package depth | 550 mm |
| Package width | 430 mm |
| Package height | 450 mm |
| Package weight | 11.2 kg |
| Technical details | |
| Package width | 430 mm |
| Package height | 450 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Cooling type | Passive |
| Rack capacity | 9U |
| International Protection (IP) code | IP40 |
| Colour | |
| Product colour | White |
| Material | |
| Material | Glass |
