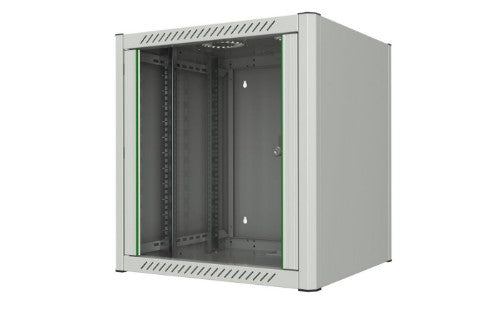

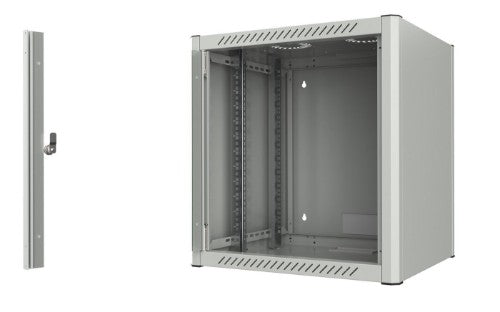

by Logon 19" Rack Cabinet 12U 60 x 56 Wallmount
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded alminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
Key Features
- Glass Door
- Wallmount
- RAL7035
- Cage nuts can be bought separate
Description
Product Dimensions: 600 x 560 x 645mmColored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded alminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 12U |
| International Protection (IP) code | IP20 |
| Castor wheels | No |
| Removable back door | No |
| Front door construction | Glass/Steel |
| Mounting hole shape | Round |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Material | Glass |
| Cooling type | Passive |
| Product colour | White |
| Rack rails | Yes |
| Preassembled | Yes |
| Soundproof | No |
| Cable entry point | Yes |
| Weight & dimensions | |
| Package depth | 620 mm |
| Package width | 640 mm |
| Package height | 650 mm |
| Package weight | 26.5 kg |
| Width | 600 mm |
| Depth | 560 mm |
| Height | 645 mm |
| Weight | 25.6 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
| Package depth | 620 mm |
| Package width | 640 mm |
| Package height | 650 mm |
| Package weight | 26.5 kg |
| Technical details | |
| Package width | 640 mm |
| Package height | 650 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Dimensions (WxDxH) | 600 x 560 x 645 mm |
| Cooling type | Passive |
| Rack capacity | 12U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | White |
| Material | |
| Material | Glass |
| Other features | |
| Dimensions (WxDxH) | 600 x 560 x 645 mm |
